Shandong Menglianggu Machinery Manufacturing Co., Ltd. is a professional manufacturer which developed and manufactured all kinds of man-made machineries and equipments. We have been deeply engaged in the wood-based panel machinery industry for more than 20 years, focusing on R & D and manufacturing a full set of wood-based panel machinery and equipment.The main products include: A full set of plywood production line, new high-end h...
Product Introduction

Product name:Hot Press Machine

Price:$25,000.00-$38,000.00


NO

ltem

Data

1

Nominal pressure

400T 500T 600T 800T

2

Feeding direction

transverse

3

Layers

15 18 20 25 30 50..

4

Hydraulic cylinder

6*280mm*1440mm

5

Quick lifting cylinder

2*140mm

6

Openning

80 100mm or as your request

7

Closing time of No-load

15s

8

Power

7.5kw+22kw

9

Size of finished boards

915*2150mm,1220*2440mm,1530*3000mm...etc.

10

Dimension of whole machines

3600*1370*4600mm

11

Weight of whole machine

33000 kgs

For more detailed technical parameters,

please contact me by email sale22 at hishengyang.com or whatsapp +86 155 5092 5013


Voltage:

3P/380V/50HZ

Power (kw):

25

Applicable Industries:

Manufacturing Plant,Plywood factory

Video outgoing-inspection:

Provided

Name:

Plywood Hot Press Machine

Panel size:

3*7 4*8 5*5 5*10...

Feeding direction:

transverse

Quick lifting cylinder:

2*140

After-sales Service Provided:

Online support

Local Service Location:

None

Marketing Type:

New Product 2020

Certification:

ISO CE

Dimension(L*W*H):

3600*1370*4900mm

Weight (kG):

33000 kg

Warranty:

1 Year

Key Selling Points:

Easy to Operate

Warranty of core components:

1 Year

Customized:

Available

Nominal pressure:

400t 500t 600t 800t..

Layers:

15 18 20 25 30 50..

Hydraulic cylinder:

6*280*1440

Dimension:

3600*1370*4900mm

Weight:

33

Showroom Location:

None

Machinery Test Report:

Provided


(1)Product Overview

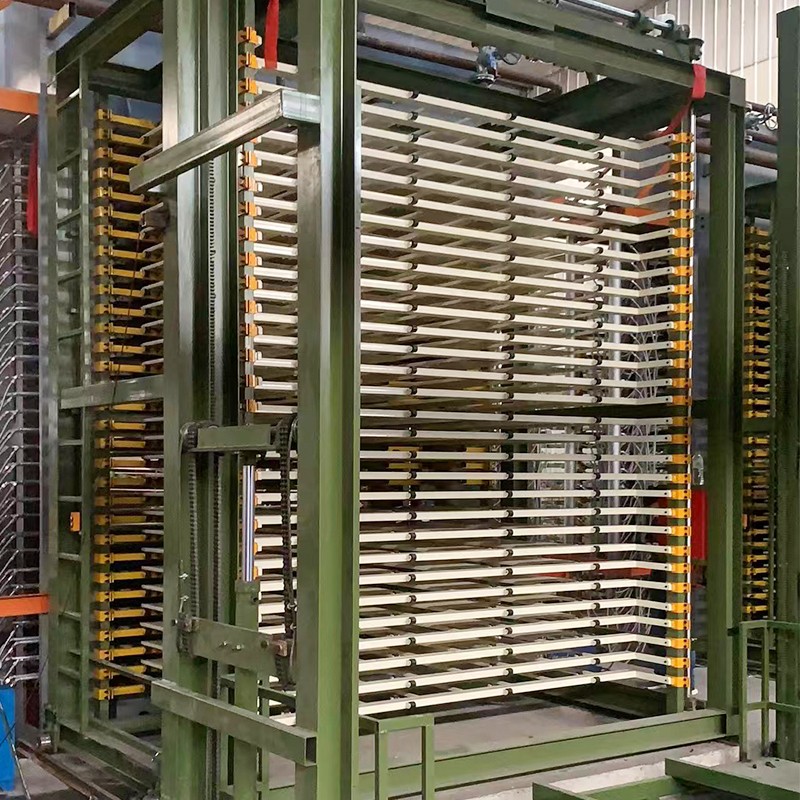

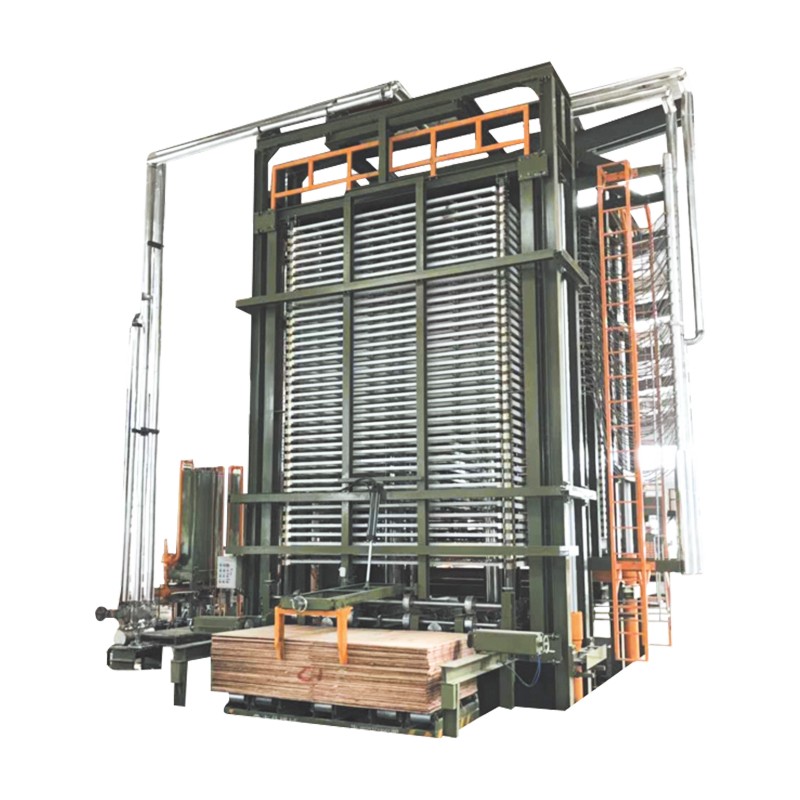

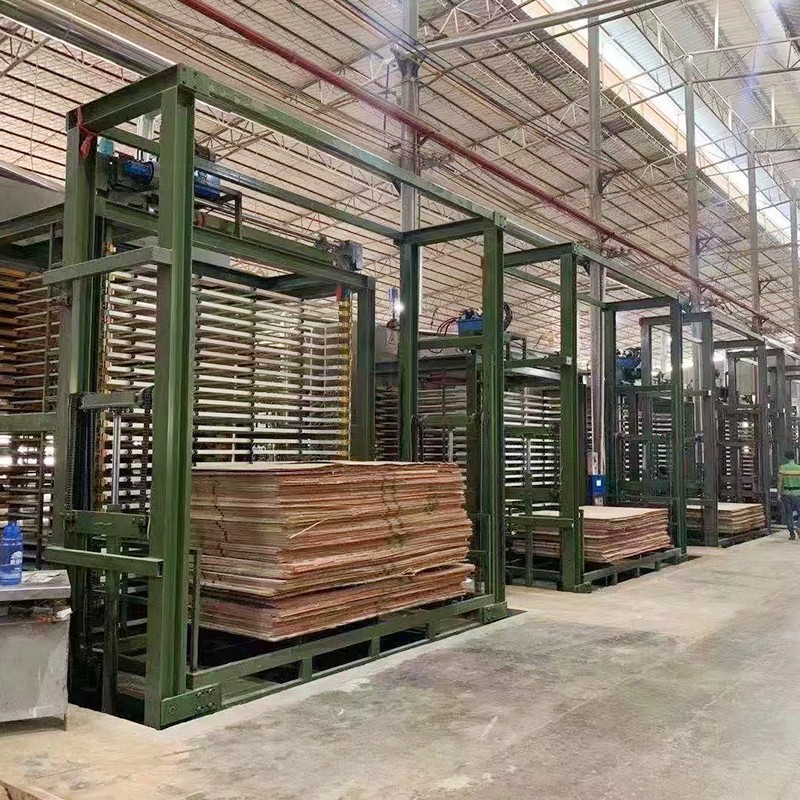

High-quality plywood production line hot press machine

This machine is mainly used on producing various specifications of PLYWOOD.

Plywood is the ideal product widely used in all kinds of furniture, office supplies, combination speaker, packaging exhibition and other industries.

Main sections of plywood production line include peeling section, veneer drying section, gluing section, pre-press section, hot press section, saw edge section, sanding section...etc.

We are expert on both single machine and whole production lines.

The thickness range of plywood is generally 3-18 mm, board width is generally 915-1220 mm.

We can design and manufacture any size according to users’ requirements.

Welcome inquiry with details about your product plan.
