Compressed Wood Pallet Machine

Compressed Wood Pallet Making Machine Wood Sawdust Pallets Machine

Features:
1) Nestable: 4-way entrance.
2) High density: 800-850 kg/m3.
3) Waterproof, anticorrosive, insect-resistant, low flammability, suitable for outdoor use.
4) Environmentally friendly (E1), 100% biodegradable.

5) Fumigation-free: Our molded pallets are made of wood fibers through high pressure and high temperature during the production process.

They are bonded by resin and are mold and insect resistant. No fumigation or heat treatment is required for export to ISPM15 compliant countries.



Product Introduction

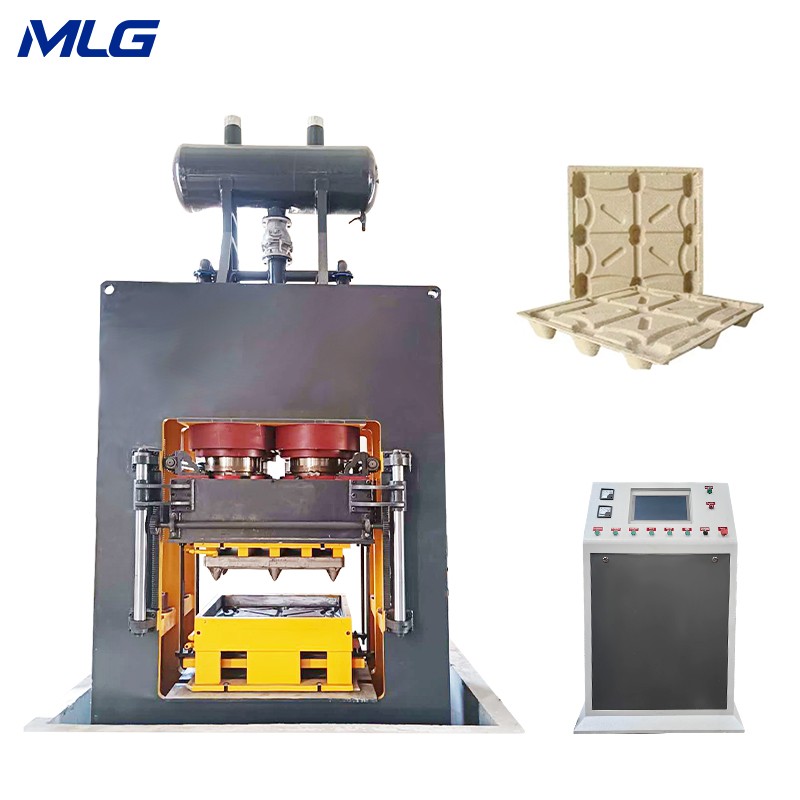

Fully Automatic Machine For Making Wood Pallets Wood Pallet Compression Machine(图1)

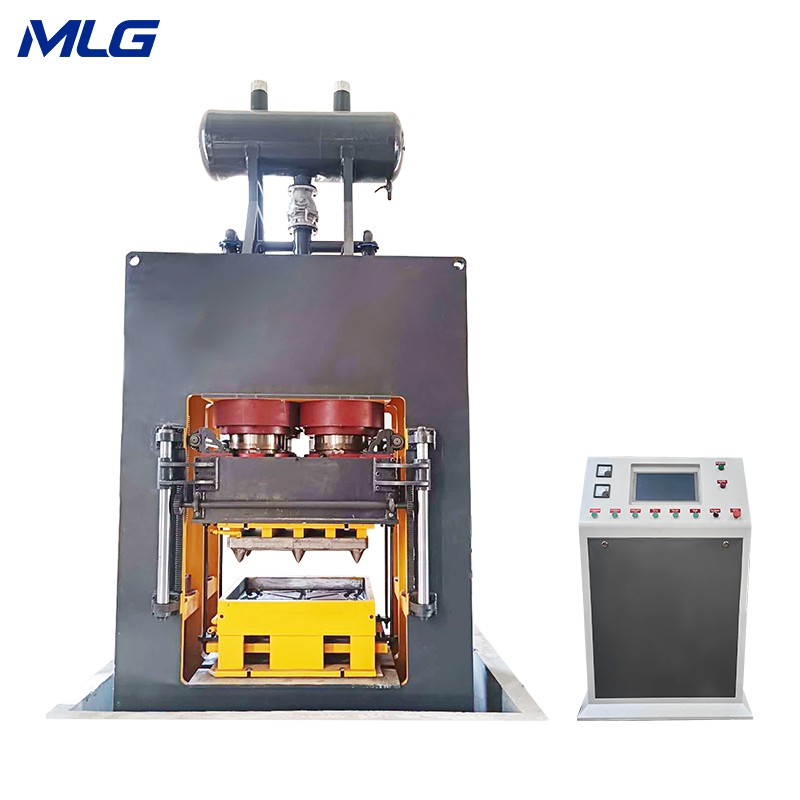

Fully Automatic Machine For Making Wood Pallets Wood Pallet Compression Machine(图2)

Nominal pressure
800T/1000T/1200T/1600T/2000T
Distance between layer
600mm
Layer
1
Size of work size
1500*1300mm
Diameter of main cylinder
1000mm
Distance of main cylinder working
600mm
Withstand voltage
≤25 Mpa
No loading closing time
Almost 5s
Motor
36.5KW servo motor
Oil tank capacity
3200L
Main electrical components
Schneider
Photoelectric/travel switch
Omron/Schneider
Control methods
Full automatic
Wood pallet size
Customizable
Features:
1) Nestable: 4-way entrance.
2) High density: 800-850 kg/m3.
3) Waterproof, anticorrosive, insect-resistant, low flammability, suitable for outdoor use.
4) Environmentally friendly (E1), 100% biodegradable.
5) Fumigation-free: Our molded pallets are made of wood fibers through high pressure and high temperature during the production process. They are bonded by resin and are mold and insect resistant. No fumigation or heat treatment is required for export to ISPM15 compliant countries.
6) Reasonable design makes our products have the advantages of saving storage space, light weight and exquisite appearance.
7) Large loading capacity, strong and durable physical characteristics and long service life.
8) One time molding, without any metal parts.

Fully Automatic Machine For Making Wood Pallets Wood Pallet Compression Machine(图4)

1) Crush wood into small pieces or use wood chips and sawdust;
2) Drying the material to about 8-10% moisture;
3) Mixing the raw material with glue;
4) Making pallets from it.


The main equipment of this production line consists of a series of chippers, crushers, dryers, glue mixers, hot presses, etc. The raw materials are chipped and crushed into wood chips of a certain length, and then enter the dryer to dry the excess moisture. Add glue to the dried wood chips and stir them thoroughly. The mixed material can be filled into the mold and hot-pressed. After hot-pressing, the molded molded tray can be taken out.

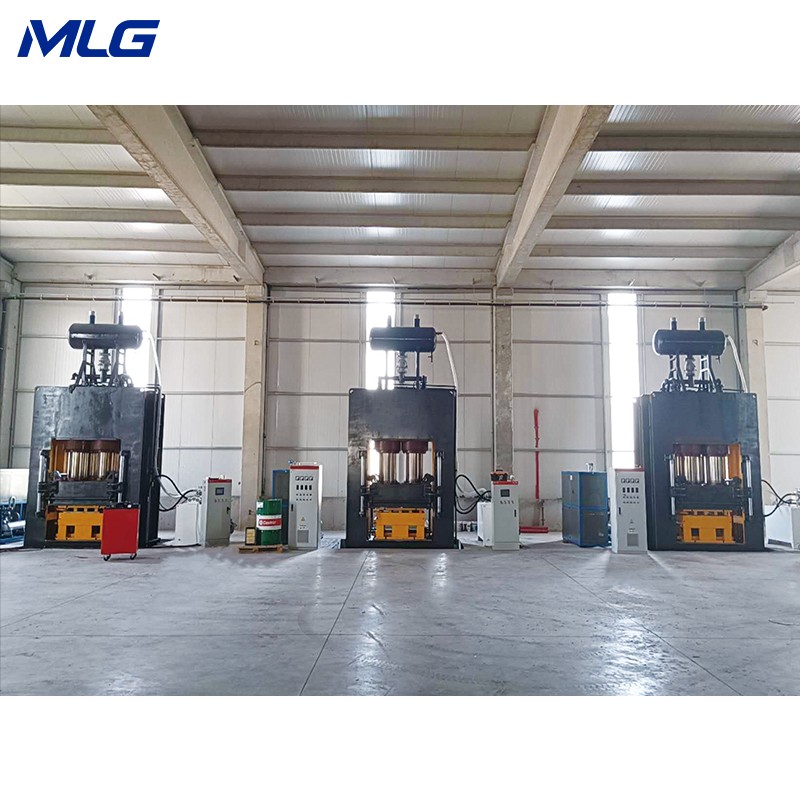

Fully Automatic Machine For Making Wood Pallets Wood Pallet Compression Machine(图5)

Fully Automatic Machine For Making Wood Pallets Wood Pallet Compression Machine(图6)

Shandong Menglianggu Machinery Manufacturing Co., Ltd. is a professional manufacturer which developed and manufactured all kinds of man-made machineries and equipments. We have been deeply engaged in the wood-based panel machinery industry for more than 20 years, focusing on R & D and manufacturing a full set of wood-based panel machinery and equipment.The main products include: A full set of plywood production line, new high-end hot press machine, cold press,short cycle melamine laminate hot press machine, melamine door equipment, wood pallet production line, hot platen, particle board/OSB/MDF production line and other equipments.We can also provide technical guidance for all kinds of wood-based board panel production and the whole factory planning and design scheme. After 20 years of continuous development and innovation, we have a number of excellent product engineers and equipment experts, perfect after-sales system and competitive price advantage, and attract customers from all over the world, which our products are exported to Asia, Europe, Africa and Oceania...... and more than 20 countries and regions, also won the support and praise of friends around the world. We will continue to serve you with more professional custom service, excellent product quality and perfect after-sales system.due your satisfaction is the goal we pursue. We believe that we will become your closest partner, also welcome partners from all over the world to visit our factory on the spot.

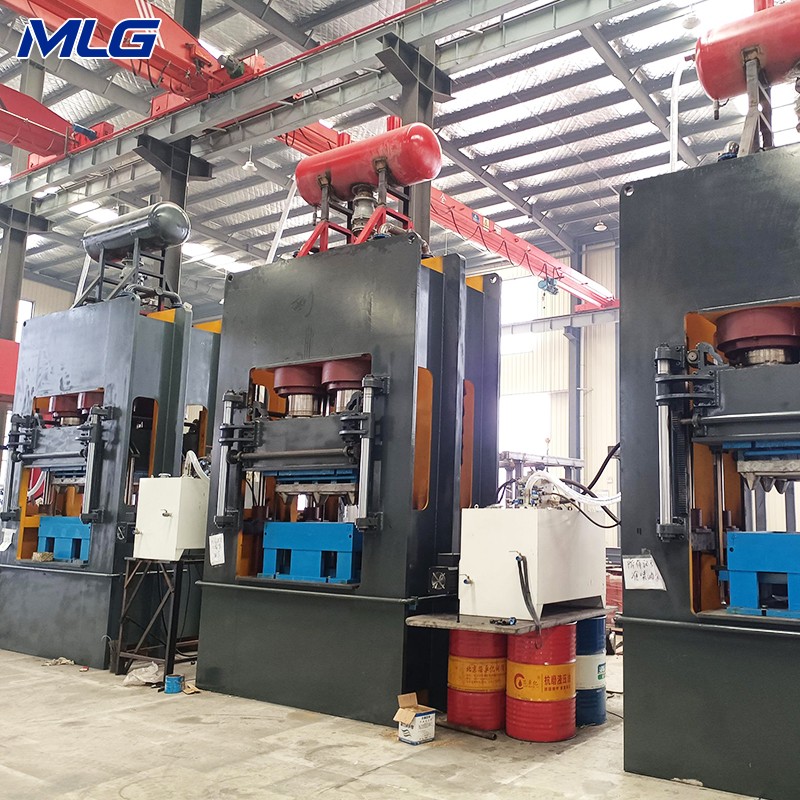

Fully Automatic Machine For Making Wood Pallets Wood Pallet Compression Machine(图7)

Pre-sale services:
1. Provide the free consultation of the equipment
2. Provide the standard device and the flow chart
3.According to the clients' special requirements, offering a reasonable plan and free design to help to select the equipment.
4.Dedicated personnel are available to entertain and visit the factory

Services during the sales:
1.Strictly inspect the machine before shipment
2.Expatriate personnel teach installation
3.Train the first-line operator.

After-sale services:
1.24 hours online service
2. Provide the VIDEO with Install and debug the equipment
3.Provide remote guidance from professionals

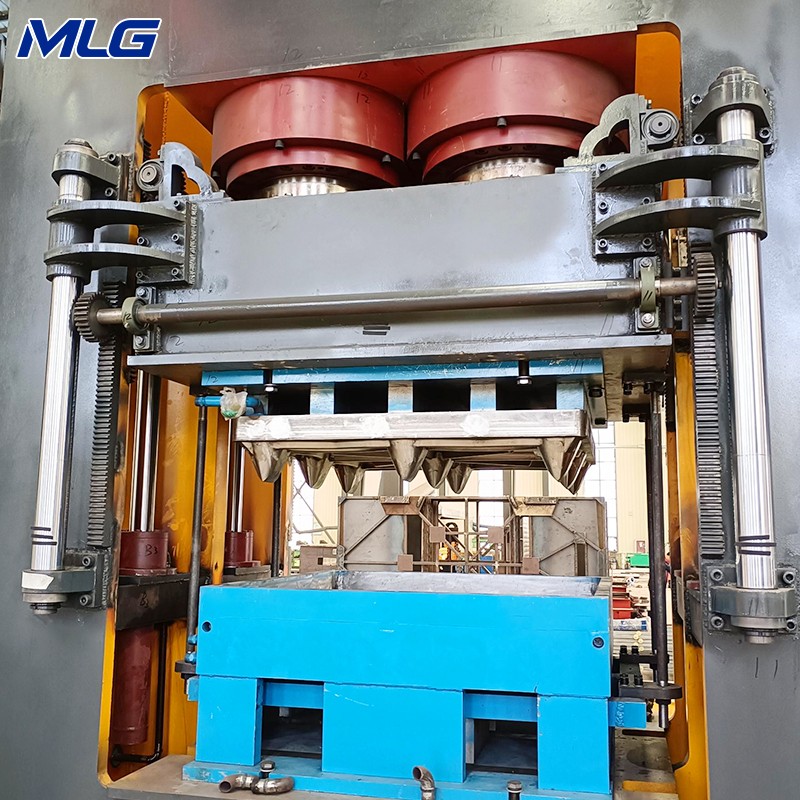

Fully Automatic Machine For Making Wood Pallets Wood Pallet Compression Machine(图8)
