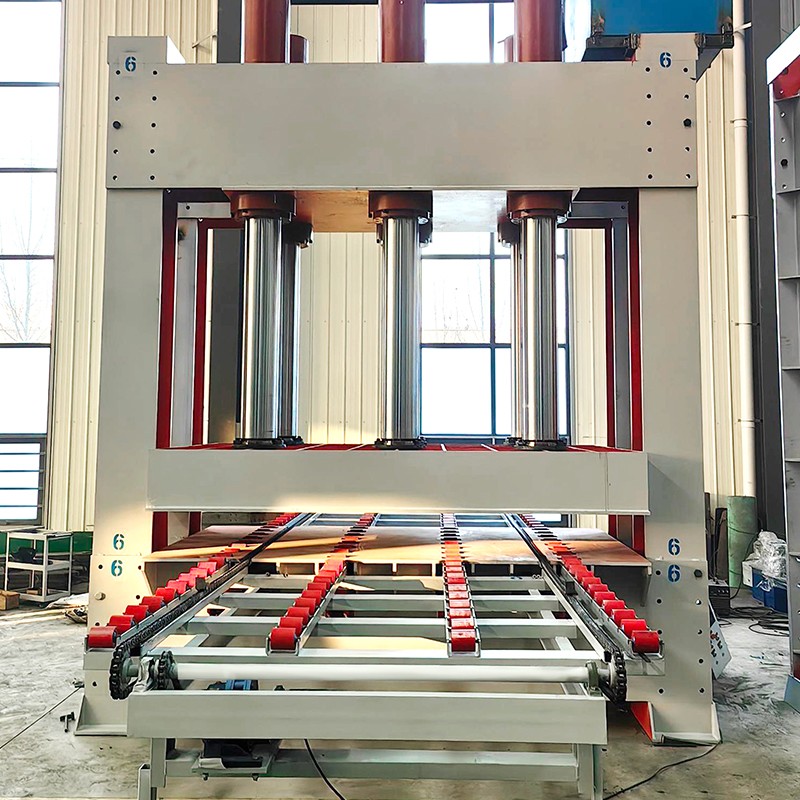

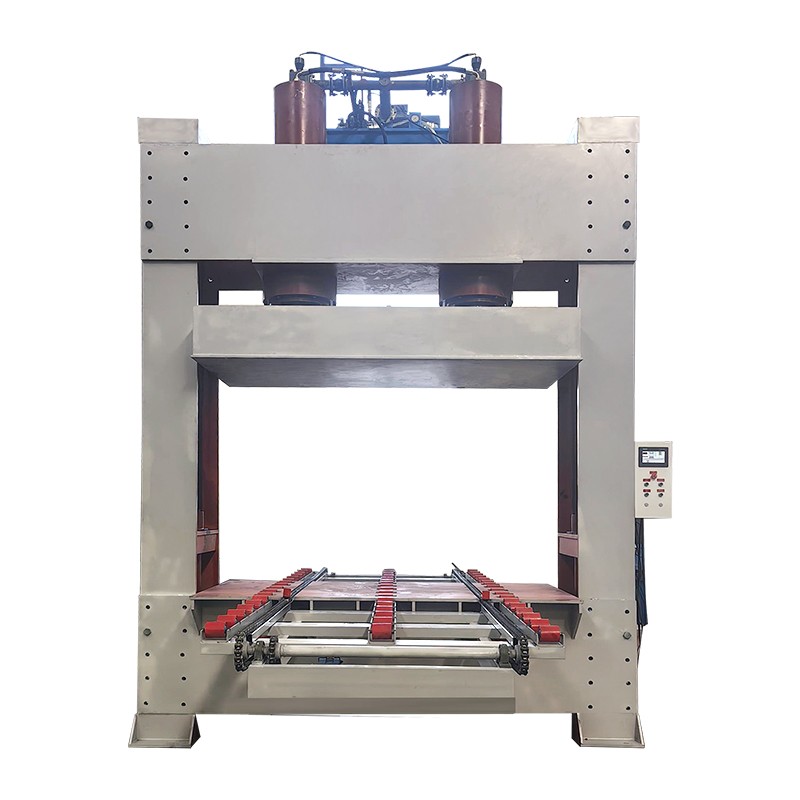

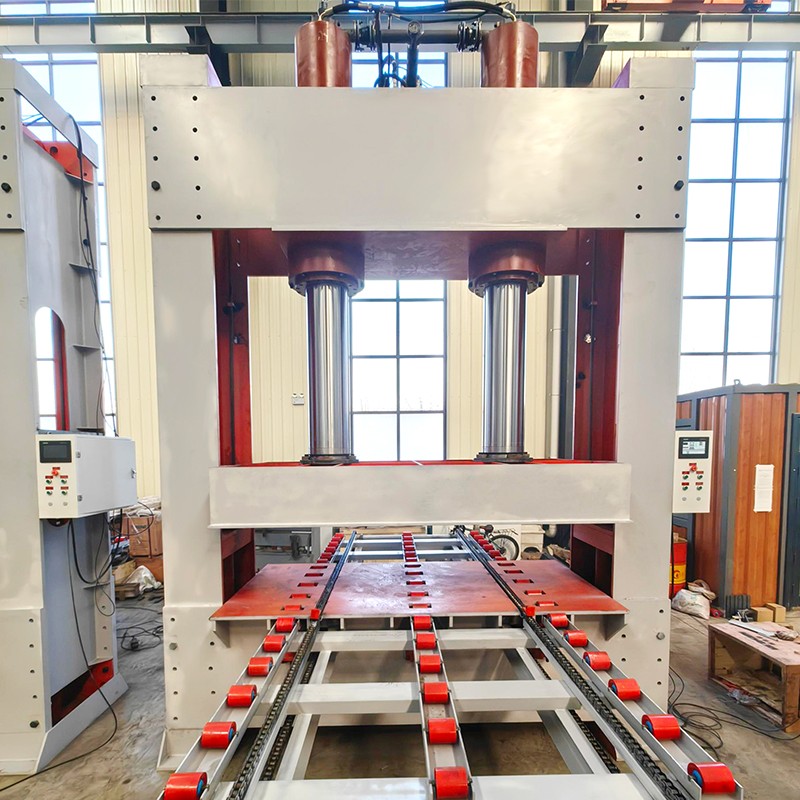

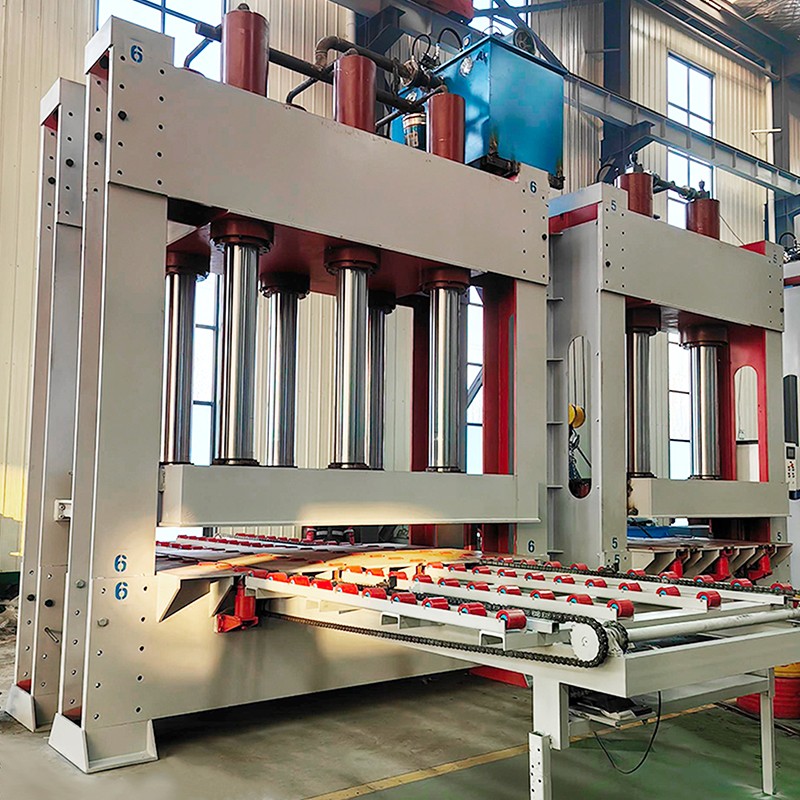

Cold Press Machine

Shandong Menglianggu Machinery Manufacturing Co., Ltd. is a professional manufacturer which developed and manufactured all kinds of man-made machineries and equipments. We have been deeply engaged in the wood-based panel machinery industry for more than 20 years, focusing on R & D and manufacturing a full set of wood-based panel machinery and equipment.The main products include: A full set of plywood production line, new high-end h...

Send Inquiry

Product Introduction

Product name：Cold Press Machine

Price：$15,000.00-$28,000.00

Specification of RotaryFace Veneer Peeling lathe
Model	400T Upper Cold Press	500T Upper Cold Press	400T ordinary cold press
Nominal gross pressure	400Tons	500Tons	400Tons
Place of cylinder	top	top	down
Nominal oil pressure	25Mpa	25Mpa	25Mpa
Dimension	360013704600mm	360013704600mm	360013704100mm
Framework	1800mm	1800mm	1800mm
Thickness of steel	30mm	35mm	30mm
Total weight	about12T	about13T	about12T
Controlling style	Automatic adding pressure. automatic unload pressure	Automatic adding pressure, automatic unload pressure	Automatic adding pressure automatic unload pressure

Place of Origin:	Shandong. China	Condition:	New
Type:	Cold Press Machine	Brand Name:	MLG
Voltage:	380V	Dimension(LWH)	360013704600mm
Power (kw):	11	Weight (KG):	1200 Kg
Applicable Industries:	Manufacturing Plant	Warranty	1 Year
Video outgoing inspection:	Provided	Key Selling Points.	Sustainable
Core Components:	Bearing, Motor, Pump, Gear, PLc, Other	Warranty of core components:	1 Year
Name:	Plywood Cold Press Machine	Usage:	Plywood Production

（1）Product overview

Cold press machine is the auxiliary in plywood production line, which is used to shorten the cycle time of hot press and improve the quality of plywood before gluing board.

Cold press machine belongs to the pressing machine.

Cold press machine is mainly used to press the gluing veneer, so that make the initial shape, and then into the hot press machine to press.

It is important to improve the quality of plywood, and it is an significant part.

Cold press machine in general consists with the rack, fixed beam, moving beam, the plate device, cylinder and hydraulic system, electric control device components.

We would like to make kinds cold press according to your demand.

（2）Main Features

1)The whole structure is designed and manufactured based on advanced international experience and new technological requirements;
2)The electric system and hydraulic system of the machine have been examined precisely and the free beam will not fall by its own
gravity with results assuring exxcellent quality;

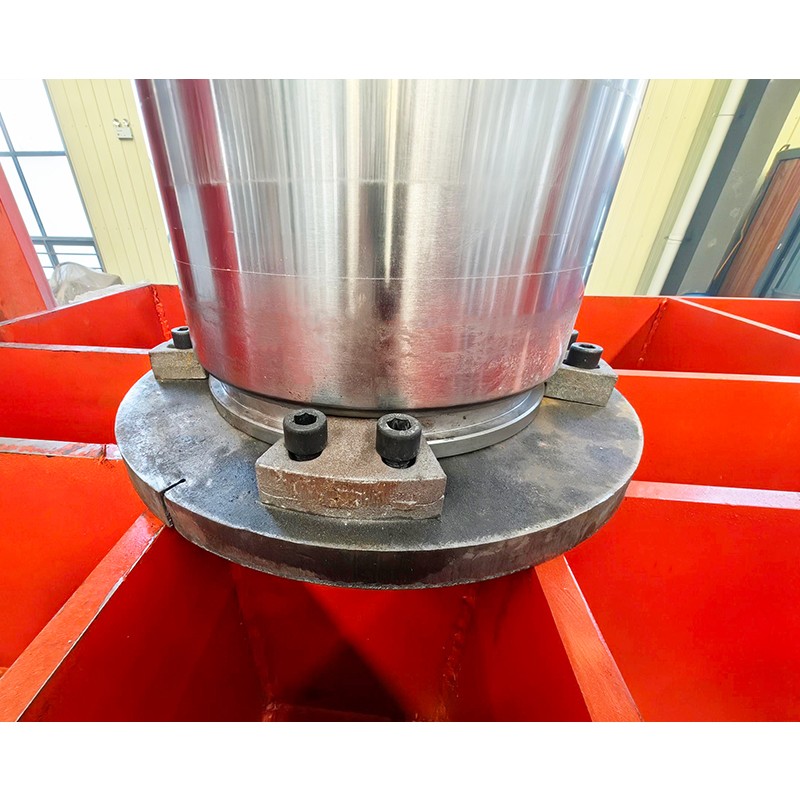

3)The cylinder is made of super-hard matal,and the seal use low-resistance stepped gaskets, no leakage.
