Automatic Peeling Production Line

Shandong Menglianggu Machinery Manufacturing Co., Ltd. is a professional manufacturer which developed and manufactured all kinds of man-made machineries and equipments. We have been deeply engaged in the wood-based panel machinery industry for more than 20 years, focusing on R & D and manufacturing a full set of wood-based panel machinery and equipment.The main products include: A full set of plywood production line, new high-end h...
Product Introduction

Video outgoing-inspection

Provided

Machinery Test Report

Provided

Marketing Type

Ordinary Product

Warranty of core components

1 Year

Core Components

PLC, Engine, Bearing, Gearbox, Motor, Pressure vessel, Gear

Place of Origin

Shandong, China

Warranty

1 Year

Key Selling Points

Easy to Operate

Applicable Industries

Manufacturing Plant, log debarker machine

Showroom Location

None

Weight (kG)

3200

Condition

New

Peeling Rate

100%

Wood Loss Rate

less 1%

Wood Length Range

1350--2650mm

Brand Name

MLG

Voltage

380/415 can be customized

Power

29.5 KW

Dimension(L*W*H)

2800x2000x1250 mm

Product name

Log debarker machine

Function

peeling wood surface

Diameter of peeling log

30 -500 Mm

cylinder diameter

80mm

Line speed

45 m/min

Clipping knife

1500*18*16mm

Max working Size

500*1400mm

Production dimension

4000*2200*1800mm

Keywords

Wood Log Tree Debarker Machine

Advantage

High Effiency

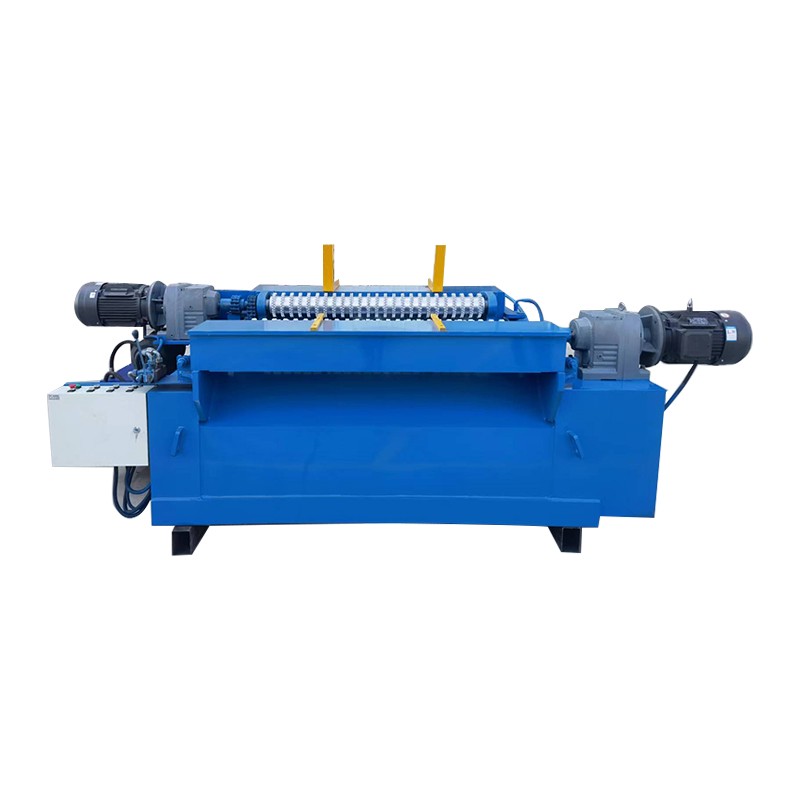

Log Debarker (图1)

Log Debarker (图2)


Plywood Production Technology:

1) Log cutting:
Usually import log length is more than 6 meters. Cutting according to the technology required length and quality. The cutting length should be product length add remains. For example, product is 1220mm*2440mm, cutting length usually be 2600mm or 1300mm.log length, camber and demerit affect plywood output directly. Remains are small wood pieces, truncations, sawdust, tec. Log cutting wastage ratio is 3%-10%.

2)Veneer peeling:
Peeling is the most popular plywood producing process. Back veneer thickness is about 0.6mm, core veneer and centre veneer thickness is about 1.8mm.

3) Drying:
Veneer is moist. it should be dried according to the technology requirement. After drying, it will shrink. Dimension will become smaller. Veneer length, width, thicknesswill shrink. Shrink wastage is related to wood material, moisture containing, veneer thickness. Shrink wastage is 4%-10%.

4) Veneer gluing and handling:
Handling include cutting, putting veneer together and mending. Cut zonal veneer into specification veneer or proper size which can be put together. Narrow zonal veneer can be put together into one veneer. Veneer with demerit can be mended to be qualified.Wastage in this part related to log material, peeled veneer quality, dried quality, and worker operation skill. Wastage ratio is 4%-16%. Import veneer processing plywood wastage ratio is 2%-11%.

5) Cold and Hot press:
Veneer be glued and stacked, then glue together under set temperature and pressure by hot press. As veneer temperature and moisture containing changes, veneer will shrink. Shrink wastage is related to temperature, pressure, hot press time, wood material, moisture containing,wastage ratio is 3%-8%

6) Edge trimming:
Trimming the edge of the plywood flank from hot press to qualified plywood board. Remains related to process remains and product dimension. Production is bigger, wastage is smaller.Wastage ratio is 6%-9%.

7) Sanding:
Sanding plywood surface to make it good. Wastage is powder. Veneer quality is good, sanding is less. Wastage ratio is 2%-6%.

Other machines
We can also provide other machines, just like veneer jointer machine, knife grinder and so on.


Log Debarker (图3)


It can be customized according to client's requirement.

We have more than 20 years of production custom experience, welcome interested friends to visit our factory.


Log Debarker (图4)


Shandong Menglianggu Machinery Manufacturing Co., Ltd. was new established in 1996. We have been deeply involved in the wood based panel machinery industry for 20 years, and have many industry equipment design experts. We focus on the R&D and manufacturing of a full set of wood based panel machinery and equipment, and provide the whole plant planning and design scheme. The main products include a full set of high grade plywood production equipment, automatic particleboard production line and oriented particleboard production line and other industrial equipment.
We will provide you with professional customized service, quality and after sales guarantee. Your satisfaction is the goal we pursue. Thanks for the trust and support from friends all over the world.
We will live up to expectations and strive to move forward. I believe we will become your closest partner.


Log Debarker (图5)
