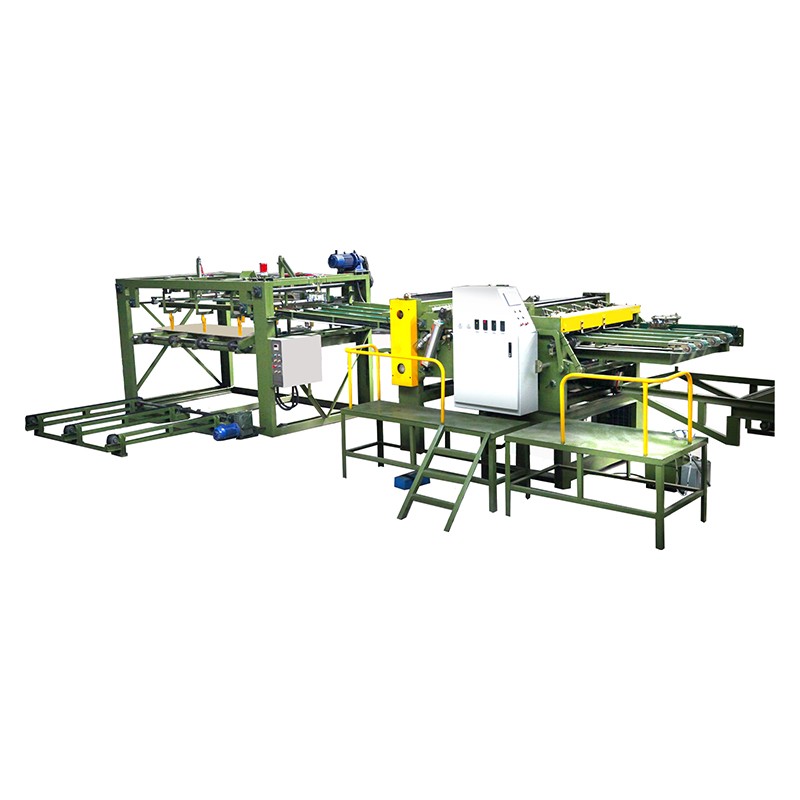

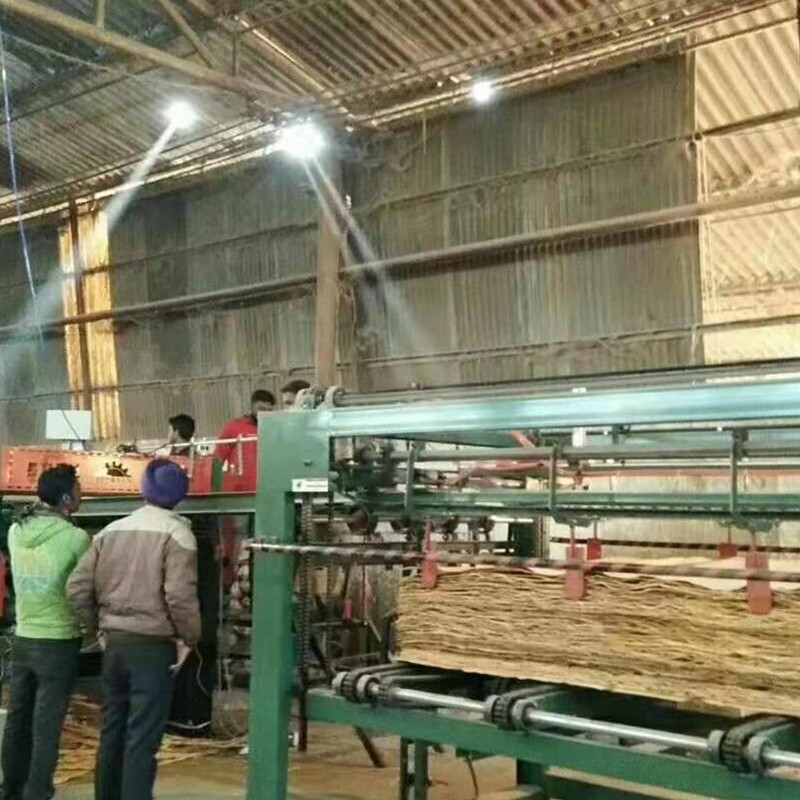

Veneer Composer Machine

Veneer Composer Machine

Shandong Menglianggu Machinery Manufacturing Co., Ltd. is a professional manufacturer which developed and manufactured all kinds of man-made machineries and equipments. We have been deeply engaged in the wood-based panel machinery industry for more than 20 years, focusing on R & D and manufacturing a full set of wood-based panel machinery and equipment.The main products include: A full set of plywood production line, new high-end h...
Product Introduction

CXCT-4B1 Configuration List

No

Position applied

Name of part

Type

Brand

Quantity

1

Main body

Main frame

Channel steel+steel plate

shengyang

1

2

Stacking frame

Main frame

Channel steel+steel plate

shengyang

1

3

Driving device for edging knife

Electric brake unit

10KG

LSD

1

motor

YE2-100L1-4  2.2KW

Lijiu

1

4

Front driving device



Reduction box

PS142L1-008-P2-S2

NEWSTART

1

Servo motor

SV-MM18-3R0B-4-7A0-3000

INVT

1

5

Driving device for finished product

Electromagnetic brake

10KG

LSD

1

6

Rear driving device

Reduction box

PS142L1-008-P2-S2

NEWSTART

1

Servo motor

SV-MM18-3R0B-4-7A0-3000

INVT

1

7

Driving device for bridge to stacking frame

Gear reduction unit

BWDO-9   0.75KW

Dongli

1

8

Driving device for lifting shaft of stacking frame

Motor

WPDS-100-B  2.2KW

Xiaoyu

1

Reduction box

BWDO-9  0.75KW

Dongli

1

9

Driving device for climbing phase of stacking frame

Gear reducer

BWDO-1-59-1.5

Dongli

1

10

Discharging Device

Gear reducer

BWD-1-59-1.5

Xiaoyu

1

11

Cutting blade

blade

Special steel

Changxing special

1



12

Elec. Control system

PLC computer control

DVP60ESZ

Delta

1

Monitor (display)

BO7S410

Delta

1

13

Low voltage circuit breaker

LC65N

Schneider

16

14

A.C. contactor

LC1E1810

Schneider

12

15

Intermediate relay

RXMLZBZBD

Schneider

19


CXCT-4b1 Parameter

Overall(LWH)

12.5m*4.3m*2.3m

Total land area (conventional collection rack)

14.5m*6.6m

Total power

380V/23 kW

Speed

36 m/min

Thickness

1.2-4.0 mm

Output Size

4’*4’   4’*8’

Gas consumption (0.6~0.8MPa)Air

320 L/min

Measurement

50m³
