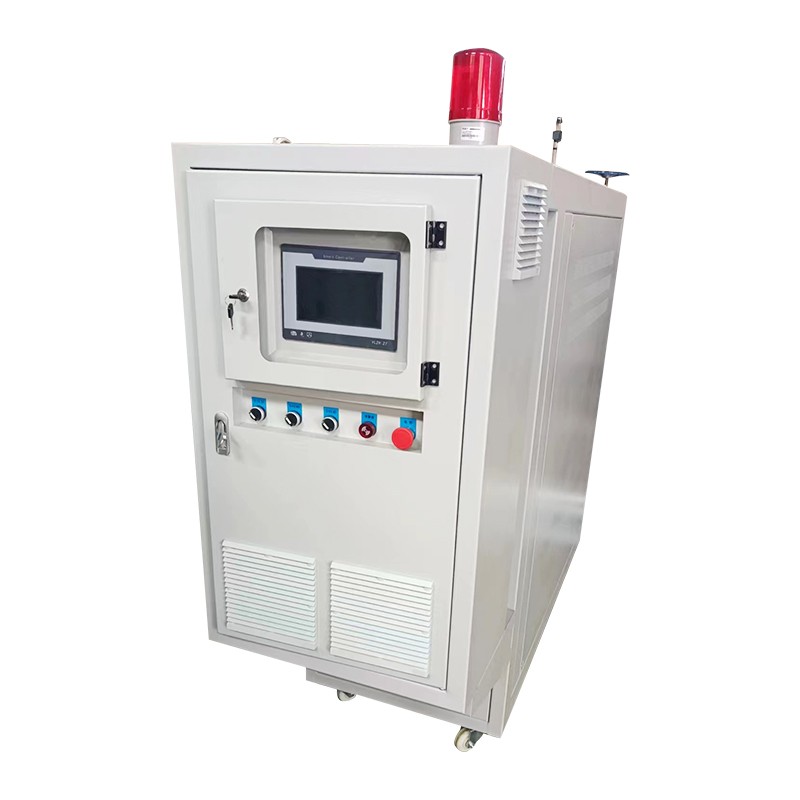

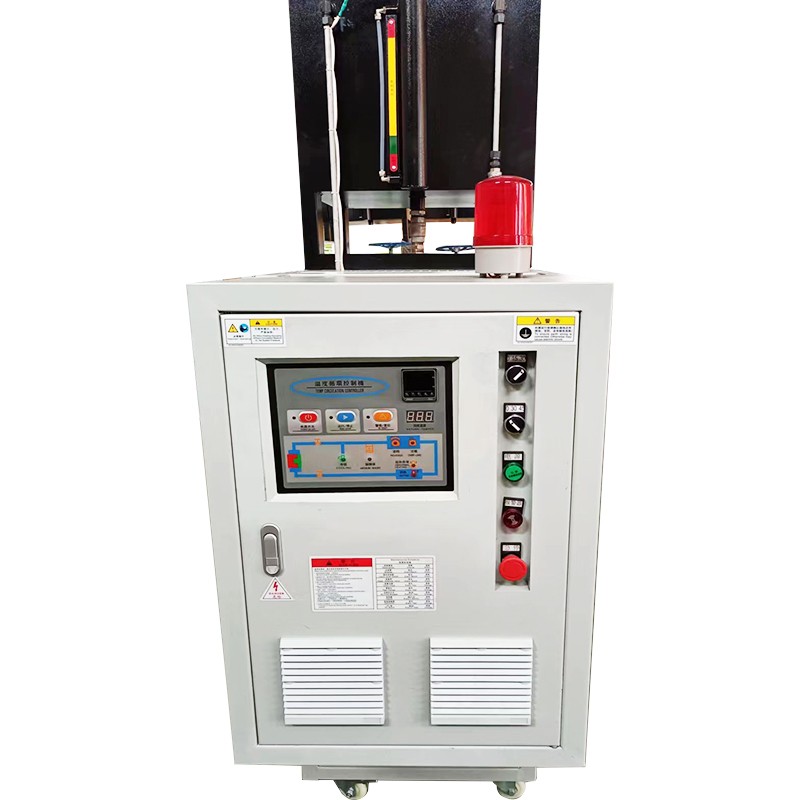

Electric Heating Boiler

Shandong Menglianggu Machinery Manufacturing Co., Ltd. is a professional manufacturer which developed and manufactured all kinds of man-made machineries and equipments. We have been deeply engaged in the wood-based panel machinery industry for more than 20 years, focusing on R & D and manufacturing a full set of wood-based panel machinery and equipment.The main products include: A full set of plywood production line, new high-end h...

Send Inquiry

Product Introduction

Place of Origin	Shandong, China
Condition	New
Type	Boiler
Weight (kG)	150 kg
Applicable Industries	Building Material Shops, Machinery Repair Shops Manufacturing Plant, Construction works , Energy & Mining, Other, wood-baes,wood-based panel factory, woodworking machinery
Warranty	1 Year
Key Selling Points	Energy saving
Usage	Plywood Production
Brand Name	MLG
Voltage	380V
Dimension(LWH)	1400x550x1200
Power (kw)	24/36
Video outgoing-inspection	Provided
Warranty of core components	1 Year
Core Components	Bearing, Motor, Pump, Gear, PLC, Gearbox, Pressure vessel, Engine, Other
Parameter	HEOT-40
Heat transfer media	Heat conducting oil
Cooling	INDIRECT COOLING
Maximum pump flow	200
Maximum pump pressure	3
After-sales Service Provided	provided
Cooling water pipe	3/8x4
Oil reserves	55
Temperature accuracy	PID+1℃
Temperature range	300℃

Product Overview

Boiler for plywood hot press machine

Boiler is equipmented with the whole plywood production line, particle board production line and the osb production line.

Feature:

1. High temperature in a low pressure

2. Stable heat system

3. Easily temperature control.

4. High heat efficient

5. Excellent operation control system

6. Safe monitor device

7. Less water, electricity, production cost

Technique data:

Rated thermal power is 0.12Mw (10×104kcal/h) to 14Mw (1200×104kcal/h).

Design pressure is equal to or greater than 1 Mpa.

Operating temperature is equal to or less than 350°C.

Thermal efficiency is between 60% and 85% according to the difference of boiler type.

Fuel：

Coal, water gas, city gas, mixed gas, light oil, heavy oil, residual oil, mixed oil, coal dust,coal water slurry, saw dust, bagasse, straw, waste oil and waste liquid.

Burning system

Coal-fired：

Fixed grate combustion, hydraulic jacking system, spiral jacking system, reciprocal

grate system, travelling grate system.

Oil-fired：

Mechanical atomization system, rotary cup atomization system, set cup atomization

system, steam atomization system, air atomization system.

Gas-fired：

Fuel gas filter, pressure switch, Gas pressure regulator, leak detection pump,solenoid valve
