Edge Cutting Saw

Shandong Menglianggu Machinery Manufacturing Co., Ltd. is a professional manufacturer which developed and manufactured all kinds of man-made machineries and equipments. We have been deeply engaged in the wood-based panel machinery industry for more than 20 years, focusing on R & D and manufacturing a full set of wood-based panel machinery and equipment.The main products include: A full set of plywood production line, new high-end h...

Send Inquiry

Product Introduction

Place of Origin	Shandong, China
Condition	New
Type	Edge Cutting Saw Machine
Weight (kG)	1200 kg
Applicable Industries	Machinery Repair Shops, Other, wood-based panel machinery factory, woodworking machinery, plywood production factory, machinery
Warranty	1 Year
Key Selling Points	Easy to Operate
Usage	Plywood Production
Brand Name	MLG
Voltage	380V
Dimension(LWH)	1220*2440mm
Power (kw)	44.5kw
Video outgoing-inspection	Provided
Warranty of core components	1 Year
Core Components	Bearing, Motor, Pump, Gear, PLc, Other, Gearbox Pressure vessel, Engine
After-sales Service Provided	Online Support
Keywords	Woodworking Panel Saw
Working methods	CNC Automatic
Certification	CE ISO9001
Color	Customers' Demand
Finished products	4*8 Feet Plywood
Panel Length	Beveled Edge 250mm
Maximum thickness of saw board	60mm
Sawing speed	0-30m/min
Board layout form	One set of fence type automatic plate arrangement and stacking

Maximum thickness of saw plate	60mm
Sawboard diagonal error range	Less than 1mm
Saw plate straightness error range	Less than 1mm
Sawing speed	0-30m/min
First saw guide rail	30mm six-edge guide rail
Second saw guide rail	φ30 cylindrical guide rail

Plywood automatic four-edge trimming saw is widely used in Plywood production line,which is controlled by PLC Control,saw blade speed can be adjusted automatically according to cutting condition,no need to stop any saw blades.
It only need 2 workers,so It could save labor cost and increase production capacity.compared with ordinary hand saws, the machine has five features: precision, high efficiency, energy saving, provincial industry and environmental protection.

We can design and manufacture any size according to users’ requirements.
Welcome inquiry with details about your product plan.

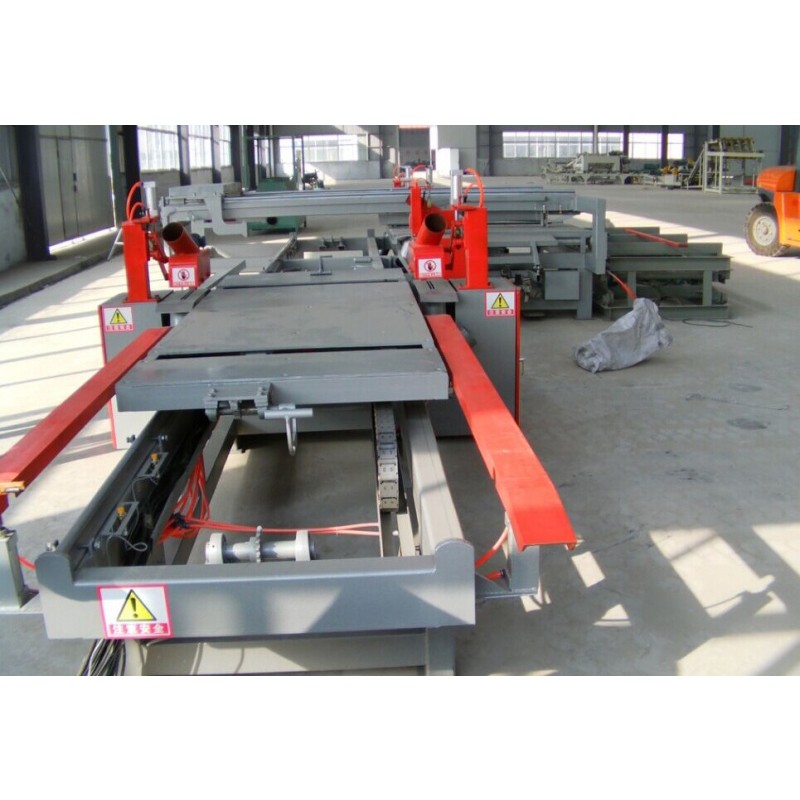

Edge Cutting Saw(图1)

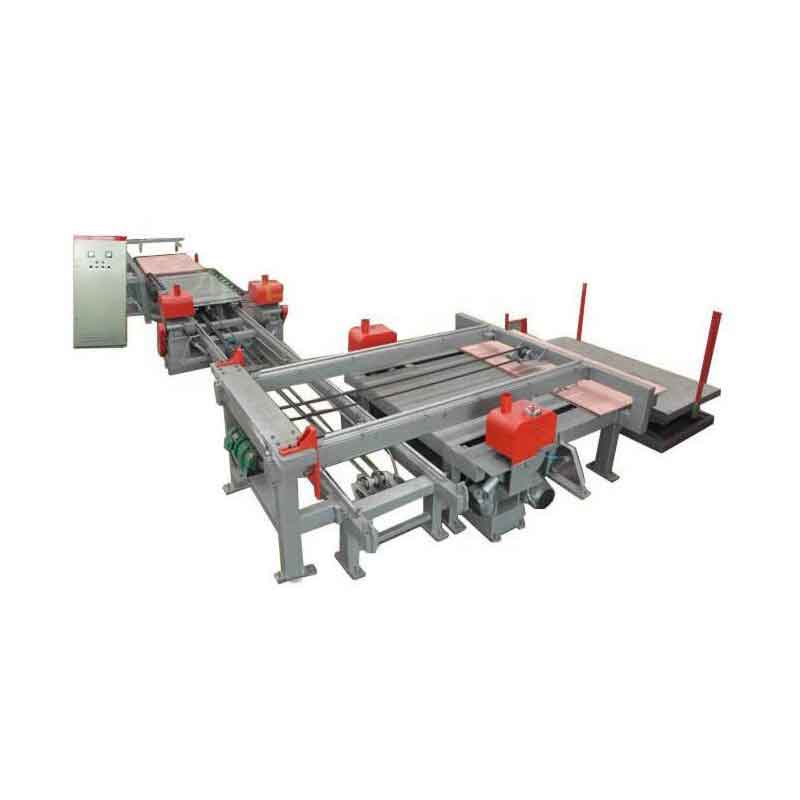

Edge Cutting Saw(图2)

Advantage

1. The main structure is strong with enoughrigidity and high stability. 2. This saw has high precision anti-wearing guide rail, infrared guidance. 3. High automatic: all working process is controlled by PLC, automatic cutting and stacking. 4. Automatic device to clear and collect the edge strips cut off from the panel. 5. This machine only needs 2 workers for feeding, and automatic feeding style onely need one worker. 6. Servo motor supply the smooth running, high speed,high precise, precise position.

Edge Cutting Saw(图3)

Edge Cutting Saw(图4)

Shandong Menglianggu Machinery Manufacturing Co., Ltd. was new established in 1996. We have been deeply involved in the wood based panel machinery industry for 20 years, and have many industry equipment design experts. We focus on the R&D and manufacturing of a full set of wood based panel machinery and equipment, and provide the whole plant planning and design scheme. The main products include a full set of high grade plywood production equipment, automatic particleboard production line and oriented particleboard production line and other industrial equipment.
We will provide you with professional customized service, quality and after sales guarantee. Your satisfaction is the goal we pursue. Thanks for the trust and support from friends all over the world.
We will live up to expectations and strive to move forward. I believe we will become your closest partner.

Edge Cutting Saw(图5)

FAQ:

1. Can you customize products for clients?
Yes, We can customize and produce woodworking machines according to the customer’s requirements or drawings.

2. How can we trust your factory?
We recommend that you come to our factory to see the goods, to verify the real situation of the products, and know more about our factory.

3.Why does the price often change?
The price depends on the latest prices of the raw materials.

4. What about the contract signing?
If you’re satisfied with the products and our service, you can sign the contract with us, pay the deposit. Then we’ll produce the machines as soon as possible. If you are far away, we can sign the contract by fax. We will ensure the quality of the products and the accessories are complete.

5. How about delivery?
When the product is ready, it can be delivered to you after your full payment. We’ll provide technical guidance.
