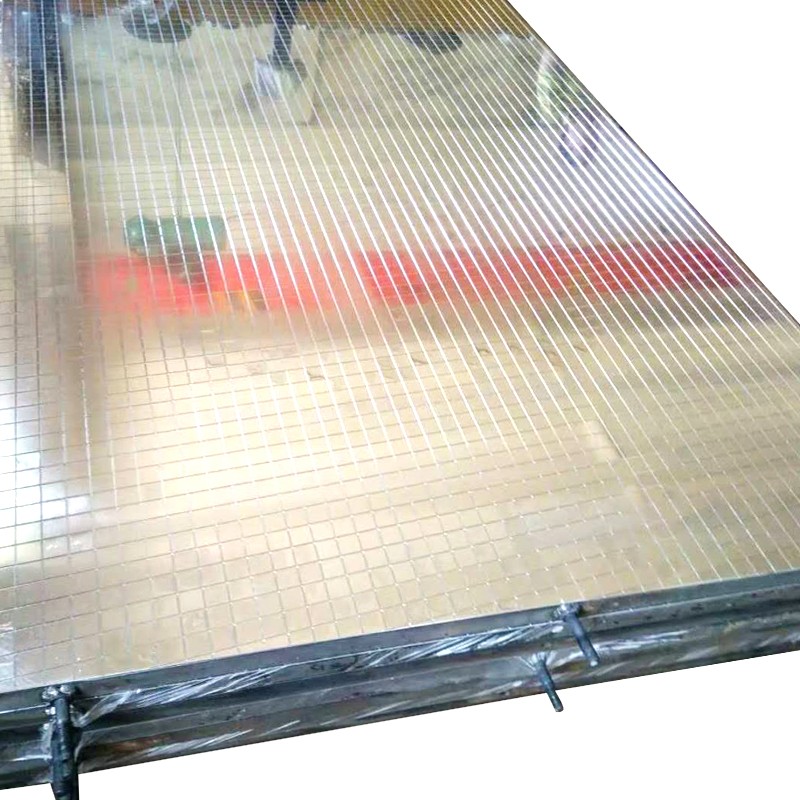

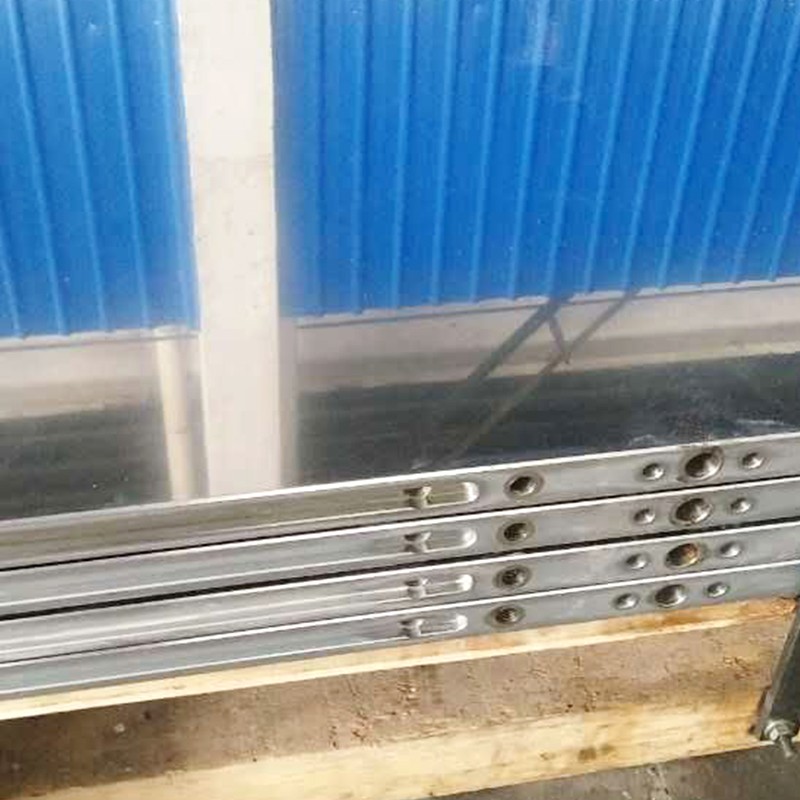

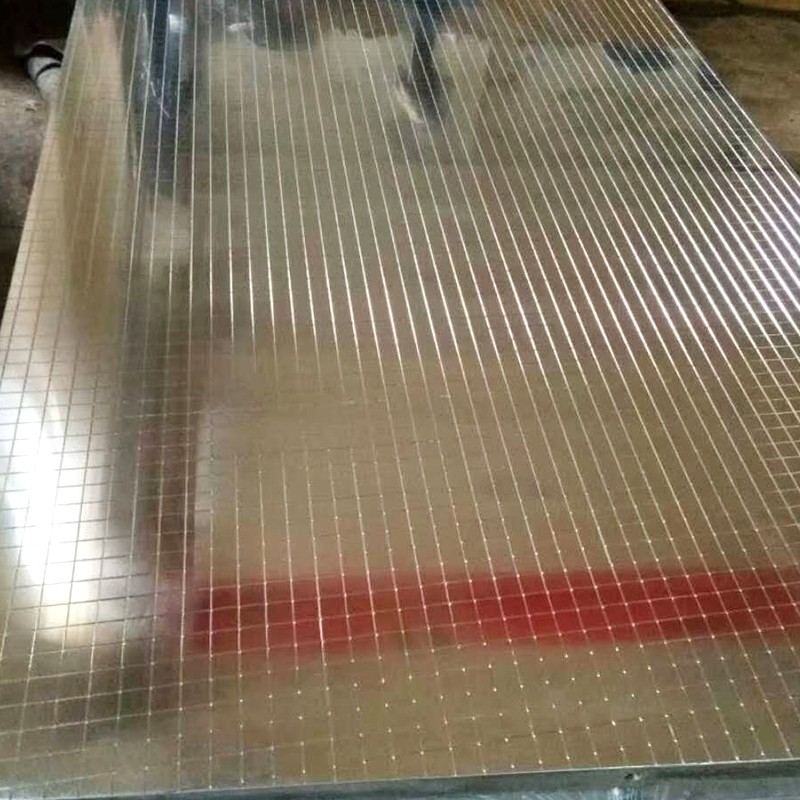

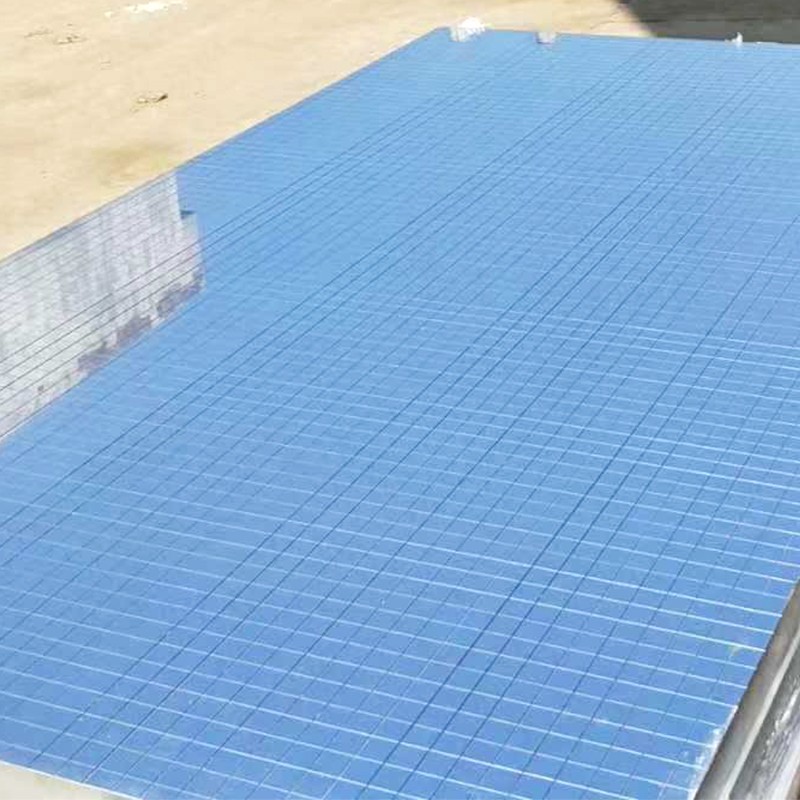

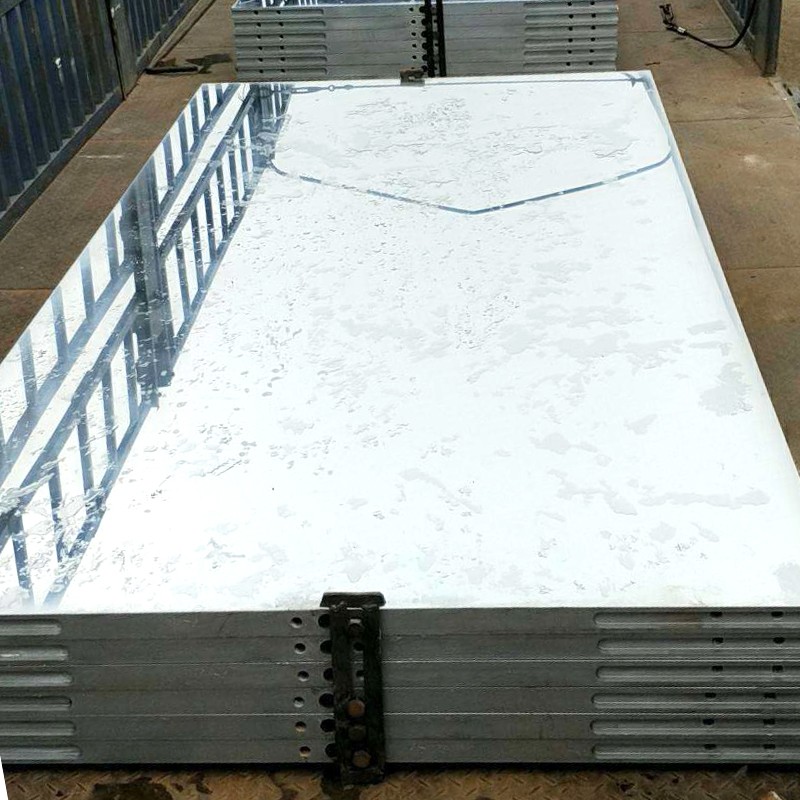

Hot Press Plate

Shandong Menglianggu Machinery Manufacturing Co., Ltd. is a professional manufacturer which developed and manufactured all kinds of man-made machineries and equipments. We have been deeply engaged in the wood-based panel machinery industry for more than 20 years, focusing on R & D and manufacturing a full set of wood-based panel machinery and equipment.The main products include: A full set of plywood production line, new high-end h...

Send Inquiry

Product Introduction

Place of Origin	Shandong, China
Condition	New
Type	Hot Press Machine
Weight (kG)	1.1 kg
Applicable Industries	Machinery Repair Shops, Manufacturing Plant,wood-based panel factory
Warranty	1 Year
Key Selling Points	Long Service Life
Usage	Plywood Production
Voltage	380V or as your requirements
Dimension(LWH)	1370270042mm
Video outgoing-inspection	Provided
Warranty of core components	1 Year
Core Components	Bearing, Motor, Pump, Gear, PLC, Gearbox Pressure vessel, Engine
Name	Hot Press Plate
Product name	Hot Press Plate For Plywood
Application	Plywood Produciton
After-sales Service Provided	Online Support
After Warranty Service	Video Technical Support Online Support
Certification	CE ISO
Size	Customized
Customized Service	Function
After-sales Service	Parts

1. Heat carrier: Oil or Water or Steam
2. Steel material: Q235 or Q355
3. Hot press platen Specification: customized size and thickness is available

Width*length: 1100*2100, 1370*2700, 1500*2600, 1400*2600...

Thickness: 42mm, 52mm, 60mm, 80mm, 100mm, 120mm, 140mm...

4. Working mode: 1-in and 1-out; 2-in and 2-out, 4-in and 4-out; 6-in and 6-out, etc...

5. Parallelism of surface tolerance: 0.03mm sqm

6. Smoothness accuracy less than 1.8 microns

7. Thickness tolerance: +/- 0.5mm

8. Diameter of cross holes internal: 30mm or 25mm

9. Distance between cross channels: 90mm

10. Accuracy of alignment inside channels: 0.033mm

11. Hydraulic pressure of welding gap: 30kg/cm2

12. The uniformity tolerance of surface temperature: 3°C

Remarks:
We can produce it according to your request. Welcome drawings from you.
