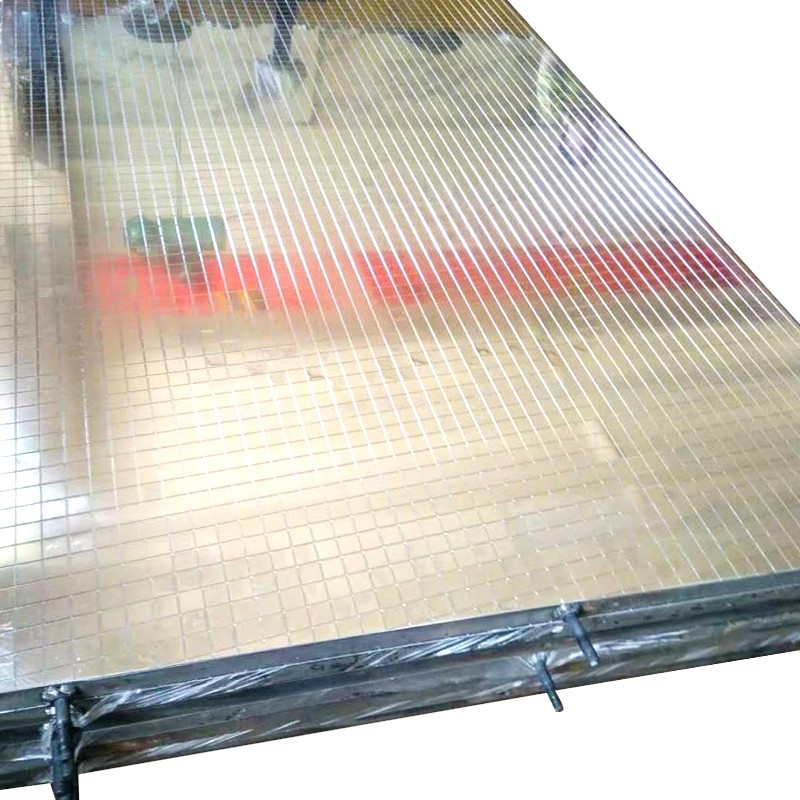

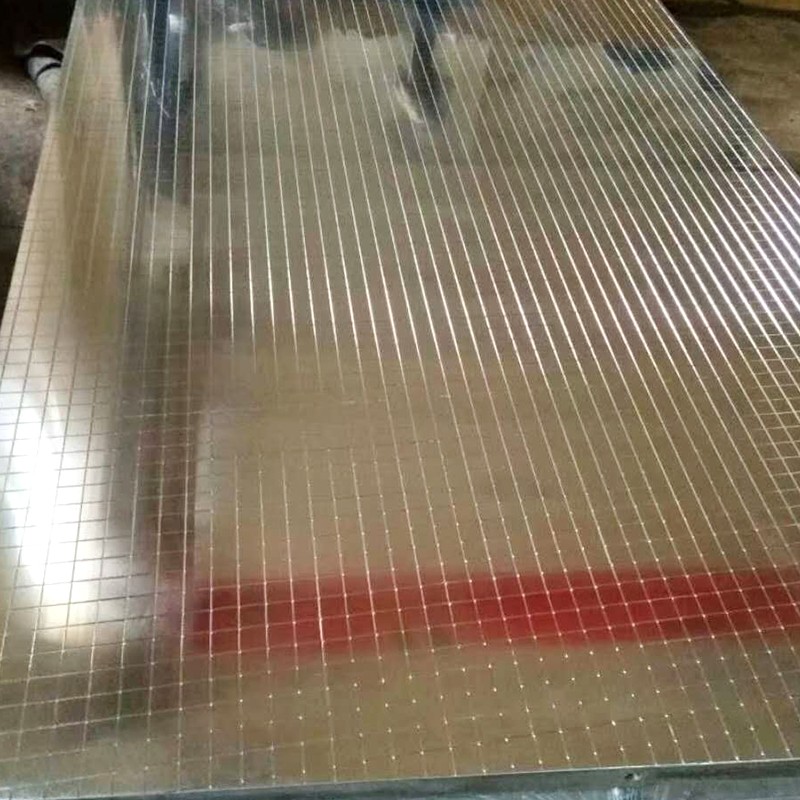

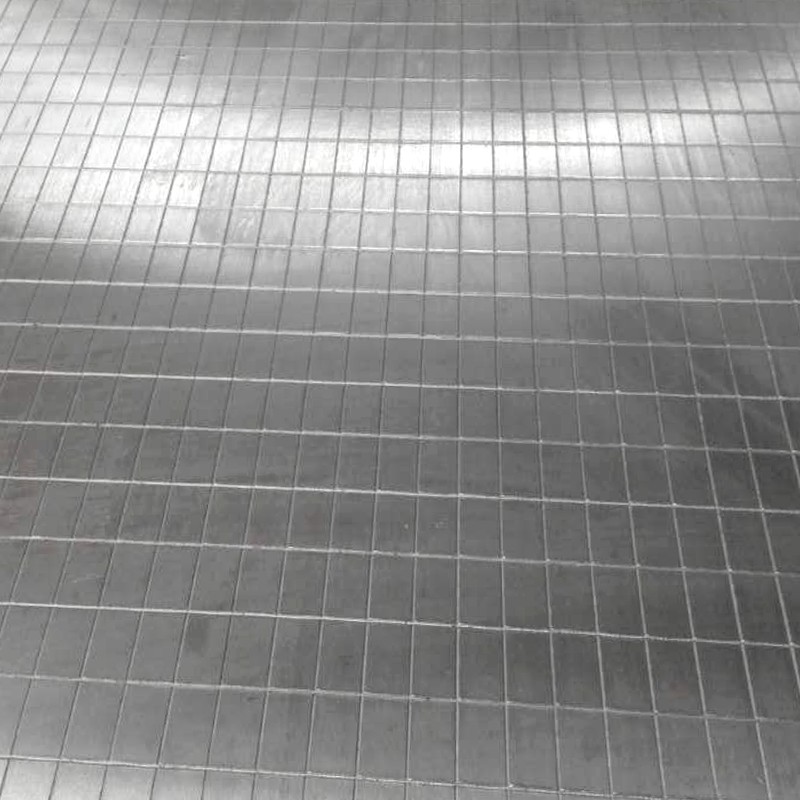

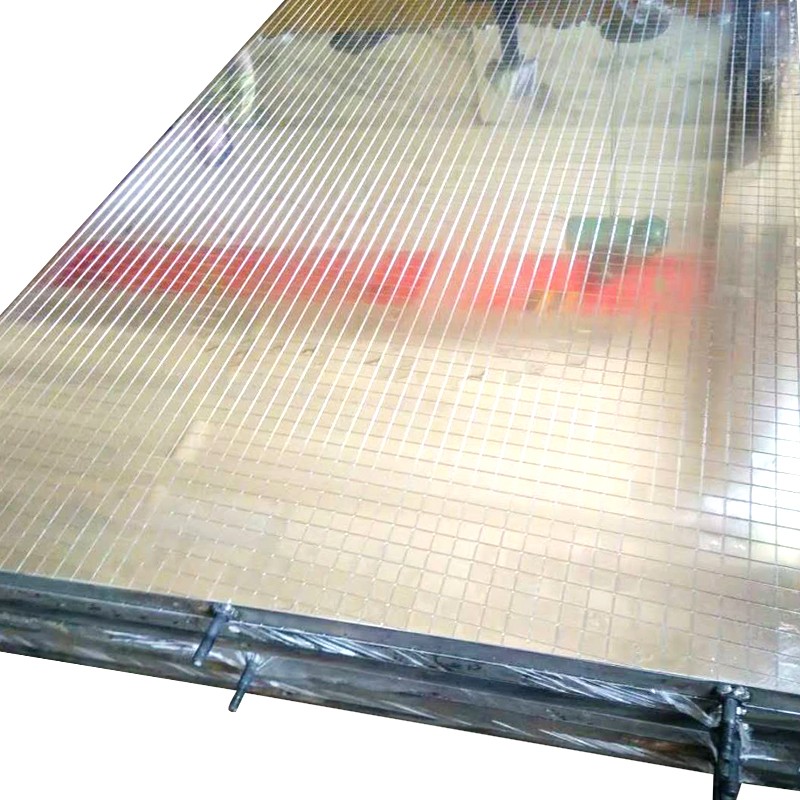

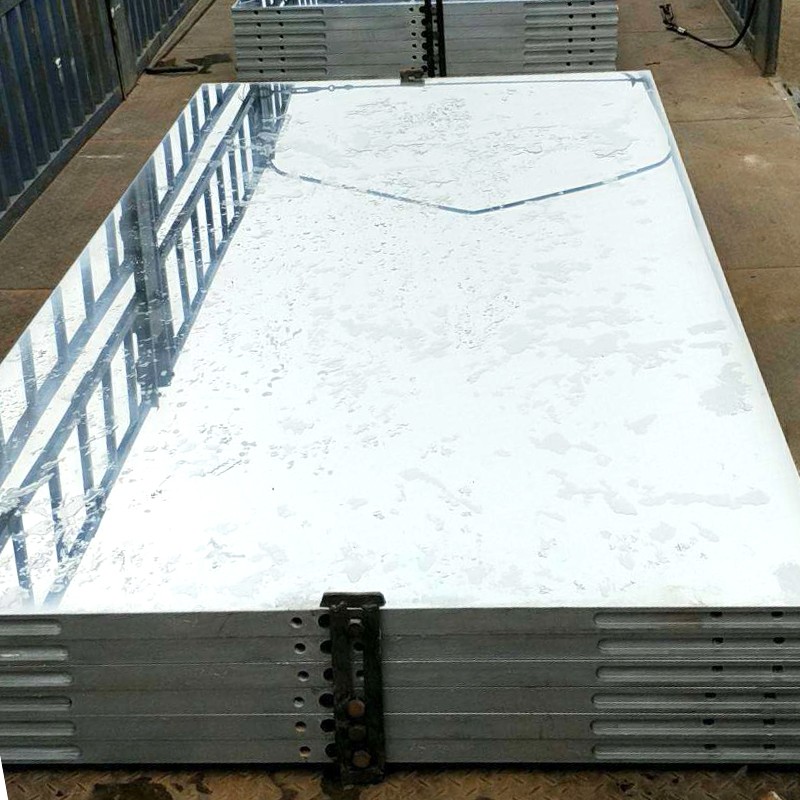

Hot Press Platen
Hot Press Plate
|
Place of Origin |
Shandong, China |
|
Condition |
New |
|
Type |
Hot Press Machine |
|
Weight (kG) |
1.1 kg |
|
Applicable Industries |
Machinery Repair Shops, Manufacturing Plant,wood-based panel factory |
|
Warranty |
1 Year |
|
Key Selling Points |
Long Service Life |
|
Usage |
Plywood Production |
|
Voltage |
380V or as your requirements |
|
Dimension(L*W*H) |
1370*2700*42mm |
|
Video outgoing-inspection |
Provided |
|
Warranty of core components |
1 Year |
|
Core Components |
Bearing, Motor, Pump, Gear, PLC, Gearbox Pressure vessel, Engine |
|
Name |
Hot Press Plate |
|
Product name |
Hot Press Plate For Plywood |
|
Application |
Plywood Produciton |
|
After-sales Service Provided |
Online Support |
|
After Warranty Service |
Video Technical Support Online Support |
|
Certification |
CE ISO |
|
Size |
Customized |
|
Customized Service |
Function |
|
After-sales Service |
Parts |
1. Heat carrier: Oil or Water or Steam
2. Steel material: Q235 or Q355
3. Hot press platen Specification: customized size and thickness is available
Width*length: 1100*2100, 1370*2700, 1500*2600, 1400*2600...
Thickness: 42mm, 52mm, 60mm, 80mm, 100mm, 120mm, 140mm...
4. Working mode: 1-in and 1-out; 2-in and 2-out, 4-in and 4-out; 6-in and 6-out, etc...
5. Parallelism of surface tolerance: 0.03mm sqm
6. Smoothness accuracy less than 1.8 microns
7. Thickness tolerance: +/- 0.5mm
8. Diameter of cross holes internal: 30mm or 25mm
9. Distance between cross channels: 90mm
10. Accuracy of alignment inside channels: 0.033mm
11. Hydraulic pressure of welding gap: 30kg/cm2
12. The uniformity tolerance of surface temperature: 3°C
Remarks:
We can produce it according to your request. Welcome drawings from you.
