Steam Boiler

Shandong Menglianggu Machinery Manufacturing Co., Ltd. is a professional manufacturer which developed and manufactured all kinds of man-made machineries and equipments. We have been deeply engaged in the wood-based panel machinery industry for more than 20 years, focusing on R & D and manufacturing a full set of wood-based panel machinery and equipment.The main products include: A full set of plywood production line, new high-end h...

Send Inquiry

Product Introduction

Place of Origin	Shandong, China
Condition	New
Type	boiler
Weight (kG)	10000 kg
Applicable Industries	Manufacturing Plant, plywood machinery
Warranty	1 Year
Key Selling Points	Easy to Operate and durable
Usage	Plywood Production
Brand Name	MLG
Voltage	380/400/415V
Dimension(LWH)	400022001800mm/5200* 2000* 2200 mm
Power (kw)	25
Video outgoing-inspection	Provided
Warranty of core components	1 Year
Core Components	Bearing, Motor, Pump, Gear, PLC, Gearbox, Pressure vessel, Engine
Name	boiler
Product name	steam boiler
Application	Wood-working
Keywords	Woodworking Lathe
Working methods	CNC Automatic
Color	Customers Requirement
After Warranty	1 year
After Warranty Service	Online Support
Steam Production	Max.8-32kg/h,8-1000kg/h
Voltage	220/380V&380V

Product Overview

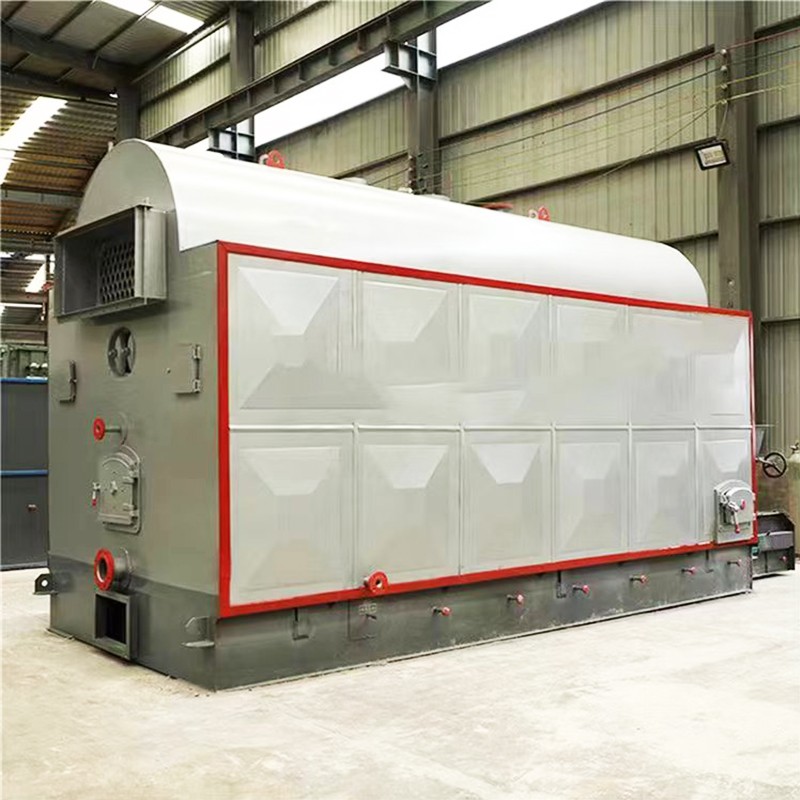

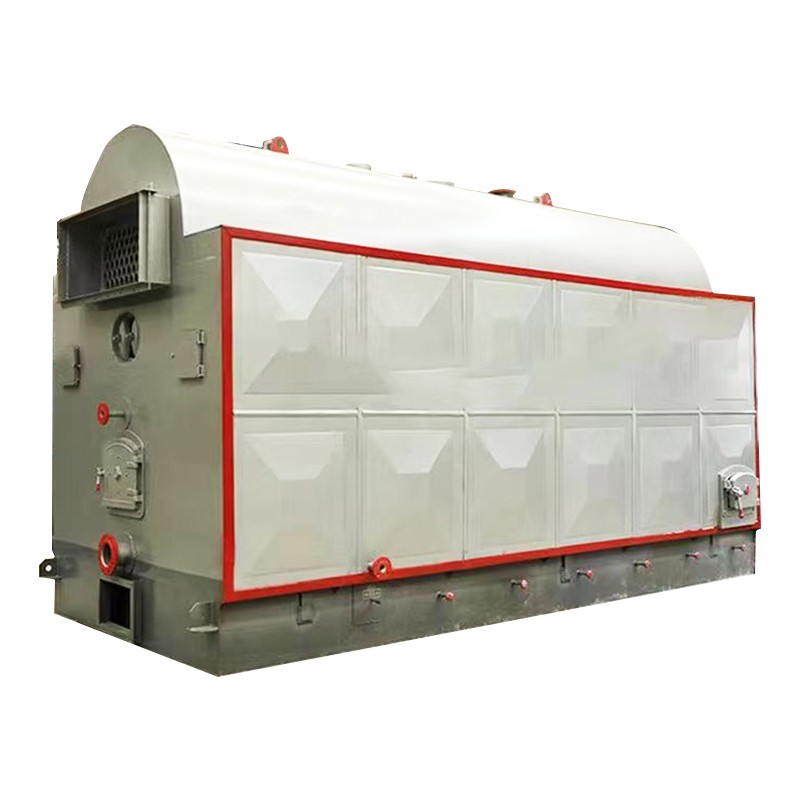

Boiler for plywood hot press machine

Boiler is equipmented with the whole plywood production line, particle board production line and the osb production line.

Feature:

1. High temperature in a low pressure

2. Stable heat system

3. Easily temperature control.

4. High heat efficient

5. Excellent operation control system

6. Safe monitor device

7. Less water, electricity, production cost

Technique data:

Rated thermal power is 0.12Mw (10×104kcal/h) to 14Mw (1200×104kcal/h).

Design pressure is equal to or greater than 1 Mpa.

Operating temperature is equal to or less than 350°C.

Thermal efficiency is between 60% and 85% according to the difference of boiler type.

Fuel：

Coal, water gas, city gas, mixed gas, light oil, heavy oil, residual oil, mixed oil, coal dust,coal water slurry, saw dust, bagasse, straw, waste oil and waste liquid.

Burning system

Coal-fired：

Fixed grate combustion, hydraulic jacking system, spiral jacking system, reciprocal

grate system, travelling grate system.

Oil-fired：

Mechanical atomization system, rotary cup atomization system, set cup atomization

system, steam atomization system, air atomization system.

Gas-fired：

Fuel gas filter, pressure switch, Gas pressure regulator, leak detection pump,solenoid valve
