Product Introduction

Product name：Hot Press Machine

Price：$25,000.00-$38,000.00

NO	ltem	Data
1	Nominal pressure	400T 500T 600T 800T
2	Feeding direction	transverse
3	Layers	15 18 20 25 30 50..
4	Hydraulic cylinder	6280mm1440mm
5	Quick lifting cylinder	2*140mm
6	Openning	80 100mm or as your request
7	Closing time of No-load	15s
8	Power	7.5kw+22kw
9	Size of finished boards	9152150mm,12202440mm,1530*3000mm...etc.
10	Dimension of whole machines	360013704600mm
11	Weight of whole machine	33000 kgs
For more detailed technical parameters, please contact me by email sale22 at hishengyang.com or whatsapp +86 155 5092 5013

Voltage:	3P/380V/50HZ
Power (kw):	25
Applicable Industries：	Manufacturing Plant,Plywood factory
Video outgoing-inspection:	Provided
Name:	Plywood Hot Press Machine
Panel size:	37 48 55 510...
Feeding direction:	transverse
Quick lifting cylinder:	2*140
After-sales Service Provided:	Online support
Local Service Location:	None
Marketing Type:	New Product 2020
Certification:	ISO CE
Dimension(LWH):	360013704900mm
Weight (kG):	33000 kg
Warranty:	1 Year
Key Selling Points:	Easy to Operate
Warranty of core components:	1 Year
Customized:	Available
Nominal pressure:	400t 500t 600t 800t..
Layers:	15 18 20 25 30 50..
Hydraulic cylinder:	62801440
Dimension:	360013704900mm
Weight:	33
Showroom Location:	None
Machinery Test Report:	Provided

（1）Product Overview

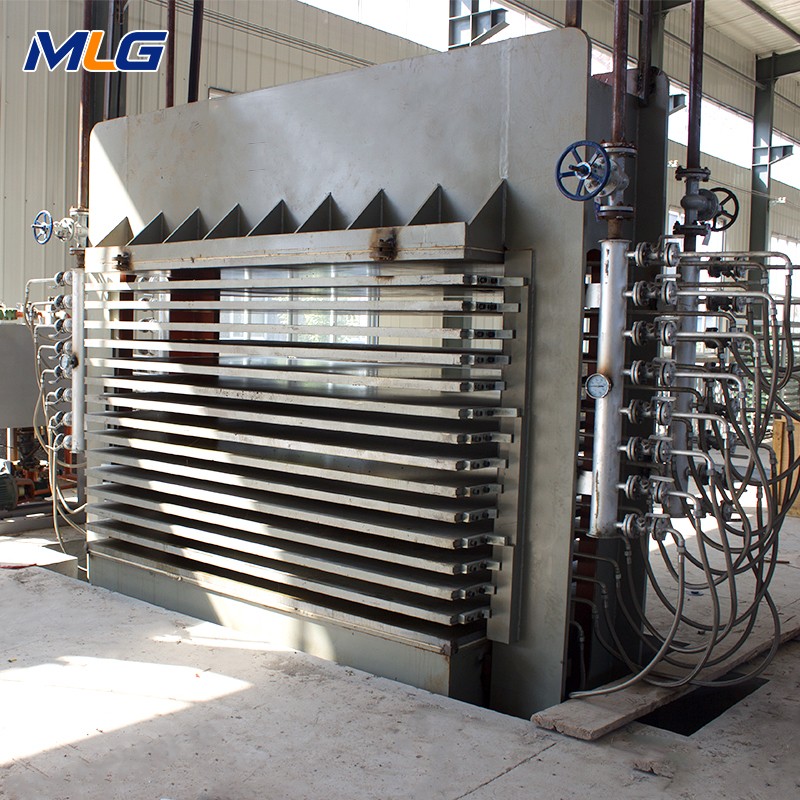

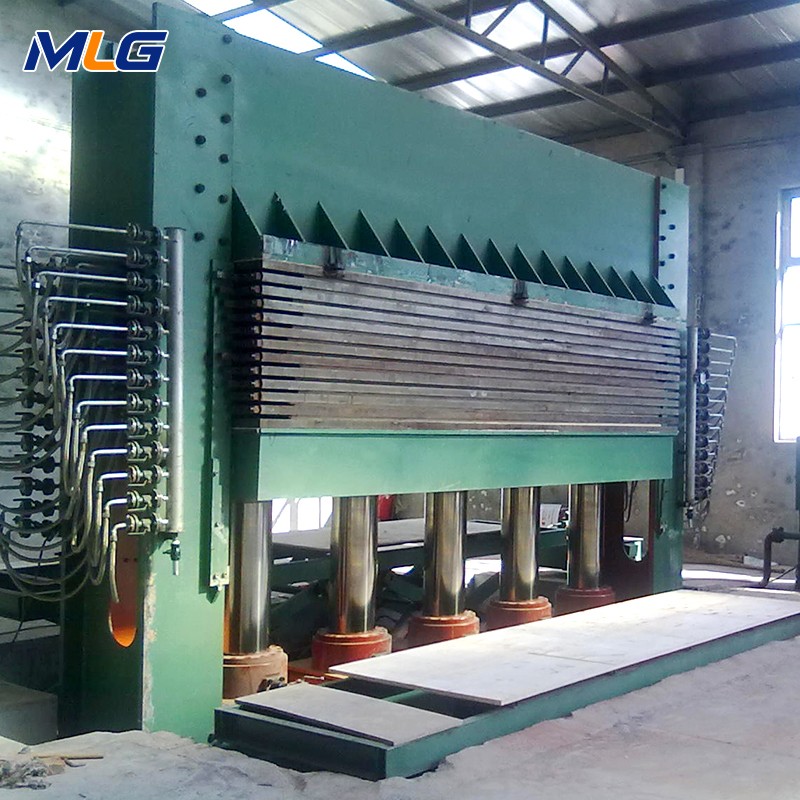

High-quality plywood production line hot press machine

This machine is mainly used on producing various specifications of PLYWOOD.

Plywood is the ideal product widely used in all kinds of furniture, office supplies, combination speaker, packaging exhibition and other industries.

Main sections of plywood production line include peeling section, veneer drying section, gluing section, pre-press section, hot press section, saw edge section, sanding section...etc.

We are expert on both single machine and whole production lines.

The thickness range of plywood is generally 3-18 mm, board width is generally 915-1220 mm.

We can design and manufacture any size according to users’ requirements.

Welcome inquiry with details about your product plan.
