Plywood Production Line

Plywood Production Line

Shandong Menglianggu Machinery Manufacturing Co., Ltd. is a professional manufacturer which developed and manufactured all kinds of man-made machineries and equipments. We have been deeply engaged in the wood-based panel machinery industry for more than 20 years, focusing on R & D and manufacturing a full set of wood-based panel machinery and equipment.The main products include: A full set of plywood production line, new high-end h...
Product Introduction

Place of Origin

Shandong, China

Condition

New

Type

Woodworking Planer, Plywood Making Machinery

Weight (kG)

100000 kg

Applicable Industries

Manufacturing Plant, Farms, Wood Veneer Peeling Machine

Warranty

1 Year

Key Selling Points

Easy to Operate and durable

Usage

Plywood Production

Brand Name

MLG

Voltage

380/400/415V

Dimension(L*W*H)

4400*2000*1600mm/5600*2000*1800 mm

Power (kw)

26kw

Video outgoing-inspection

Provided

Warranty of core components

1 Year

Core Components

Bearing, Motor, Pump, Gear, PLc, Gearbox Pressure vessel, Engine

Product name

Plywood Production Line

Pride

Factory Price

Working methods

CNC Automatic

Capacity

High Capacity

Thickness

9-25mm

Panel size

4*8feet or customize others size

Raw materia

Wood log

After Warranty Service

Video technical support

Marketing Type

Ordinary Product

Certification

ISO CE


Plywood Production Line(图1)

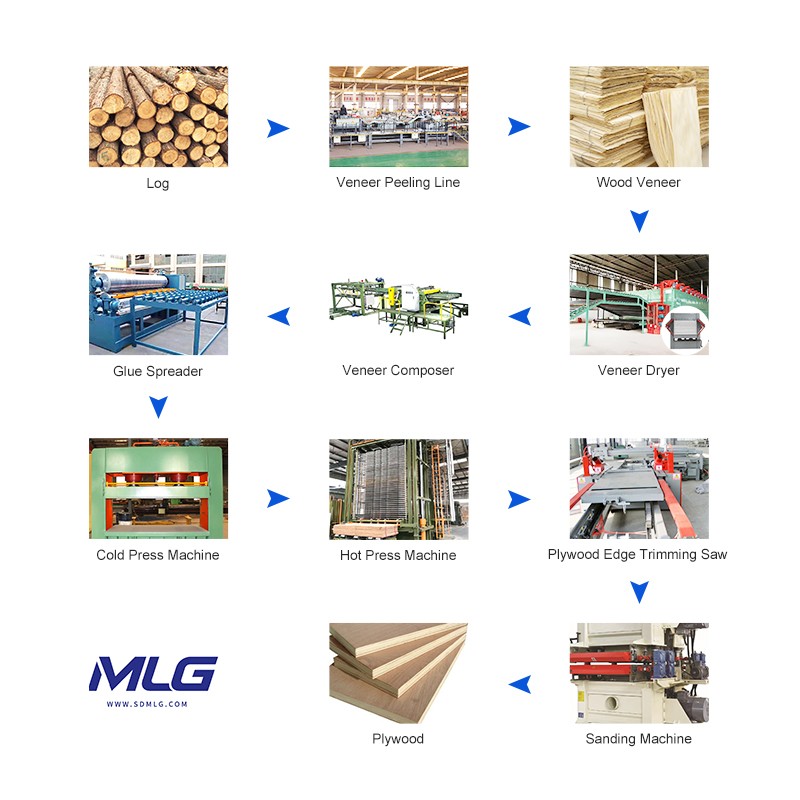

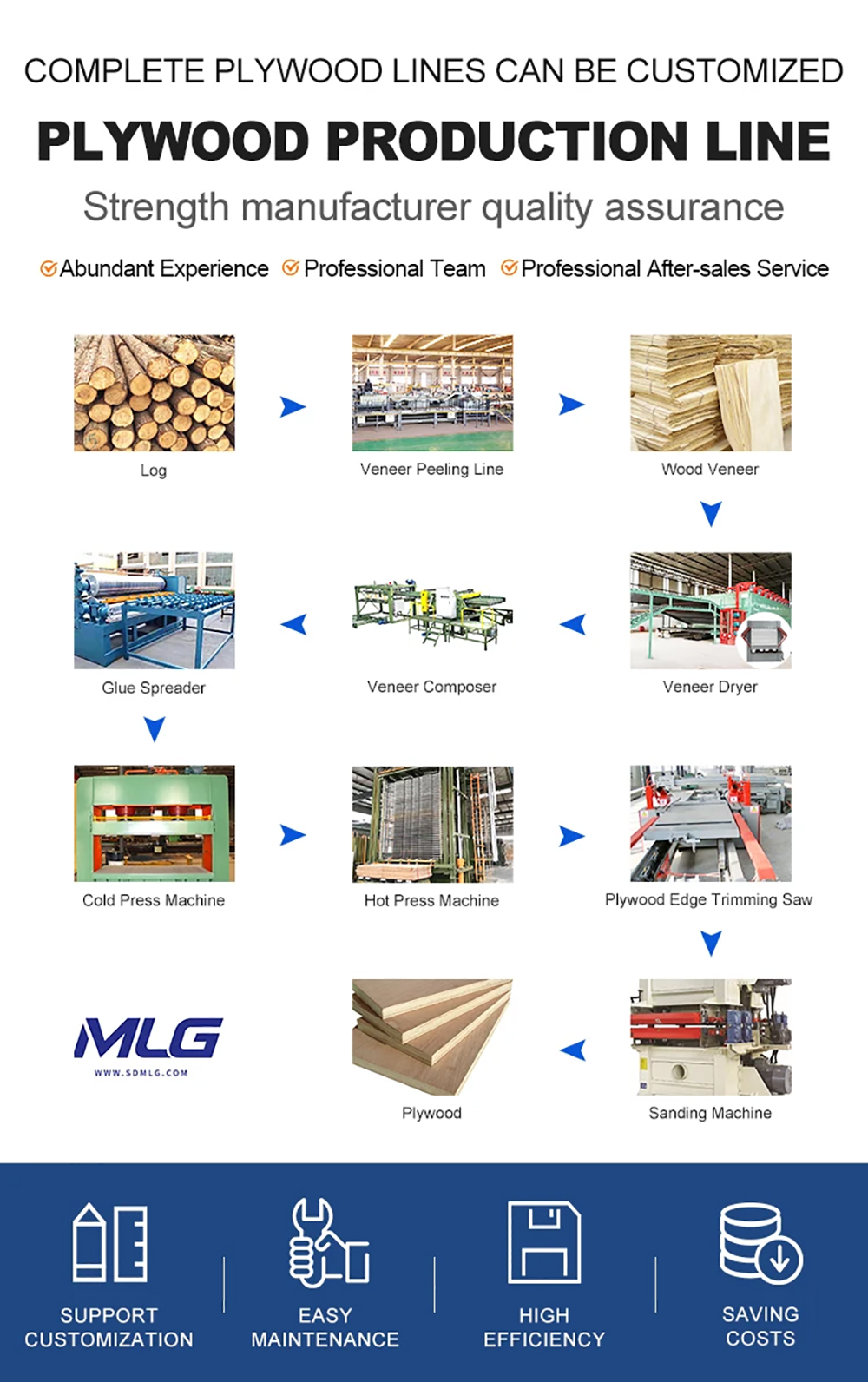

Plywood refers to that logs are spined into veneer by peeling machine , and then glued according to the veneer fiber direction which is arranged perpendicularly, and finally pressed into a wood-based panel. Plywood is the ideal product widely used in all kinds of furniture, office supplies, combination speaker, packaging exhibition and other industries.Main sections of plywood production line include peeling section, veneer drying section, gluing section, prepress section, hot press section, saw edge section, sanding section...etc. The thickness range of plywood is generally the 8-18mm, board width is generally 915-1220mm. We can design and manufacture any size according to users’ requirements.


Plywood Production Line(图2)


Plywood Production Technology:

1) Log cutting:
Usually import log length is more than 6 meters. Cutting according to the technology required length and quality. The cutting length should be product length add remains. For example, product is 1220mm*2440mm, cutting length usually be 2600mm or 1300mm.log length, camber and demerit affect plywood output directly. Remains are small wood pieces, truncations, sawdust, tec. Log cutting wastage ratio is 3%-10%.

2)Veneer peeling:
Peeling is the most popular plywood producing process. Back veneer thickness is about 0.6mm, core veneer and centre veneer thickness is about 1.8mm.

3) Drying:
Veneer is moist. it should be dried according to the technology requirement. After drying, it will shrink. Dimension will become smaller. Veneer length, width, thicknesswill shrink. Shrink wastage is related to wood material, moisture containing, veneer thickness. Shrink wastage is 4%-10%.

4) Veneer gluing and handling:
Handling include cutting, putting veneer together and mending. Cut zonal veneer into specification veneer or proper size which can be put together. Narrow zonal veneer can be put together into one veneer. Veneer with demerit can be mended to be qualified.Wastage in this part related to log material, peeled veneer quality, dried quality, and worker operation skill. Wastage ratio is 4%-16%. Import veneer processing plywood wastage ratio is 2%-11%.

5) Cold and Hot press:
Veneer be glued and stacked, then glue together under set temperature and pressure by hot press. As veneer temperature and moisture containing changes, veneer will shrink. Shrink wastage is related to temperature, pressure, hot press time, wood material, moisture containing,wastage ratio is 3%-8%

6) Edge trimming:
Trimming the edge of the plywood flank from hot press to qualified plywood board. Remains related to process remains and product dimension. Production is bigger, wastage is smaller.Wastage ratio is 6%-9%.

7) Sanding:
Sanding plywood surface to make it good. Wastage is powder. Veneer quality is good, sanding is less. Wastage ratio is 2%-6%.

Other machines
We can also provide other machines, just like veneer jointer machine, knife grinder and so on.


Plywood Production Line(图3)

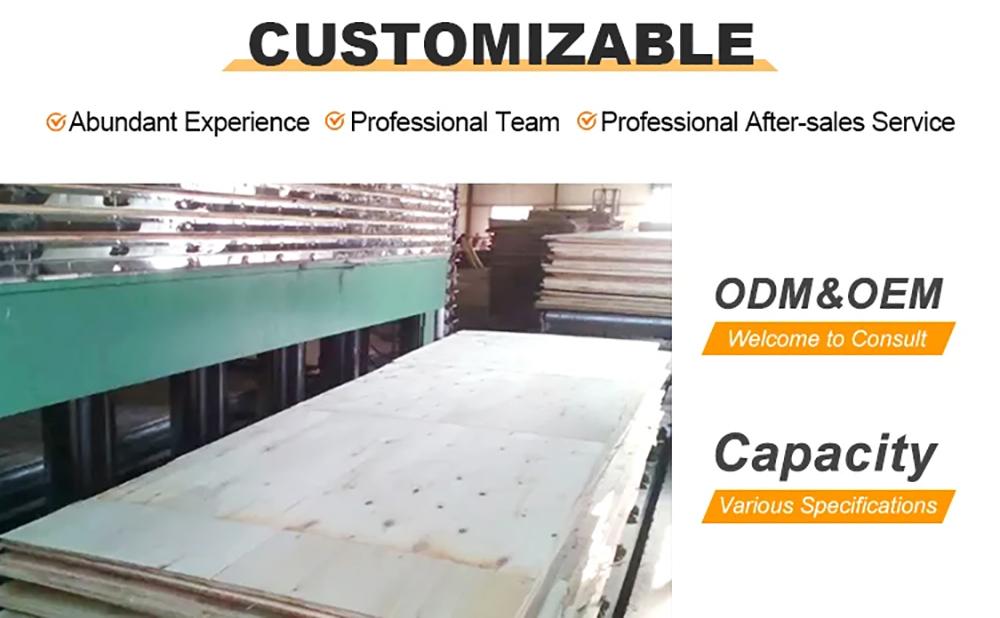

It can be customized according to client's requirement.

We have more than 20 years of production custom experience, welcome interested friends to visit our factory.


Plywood Production Line(图4)

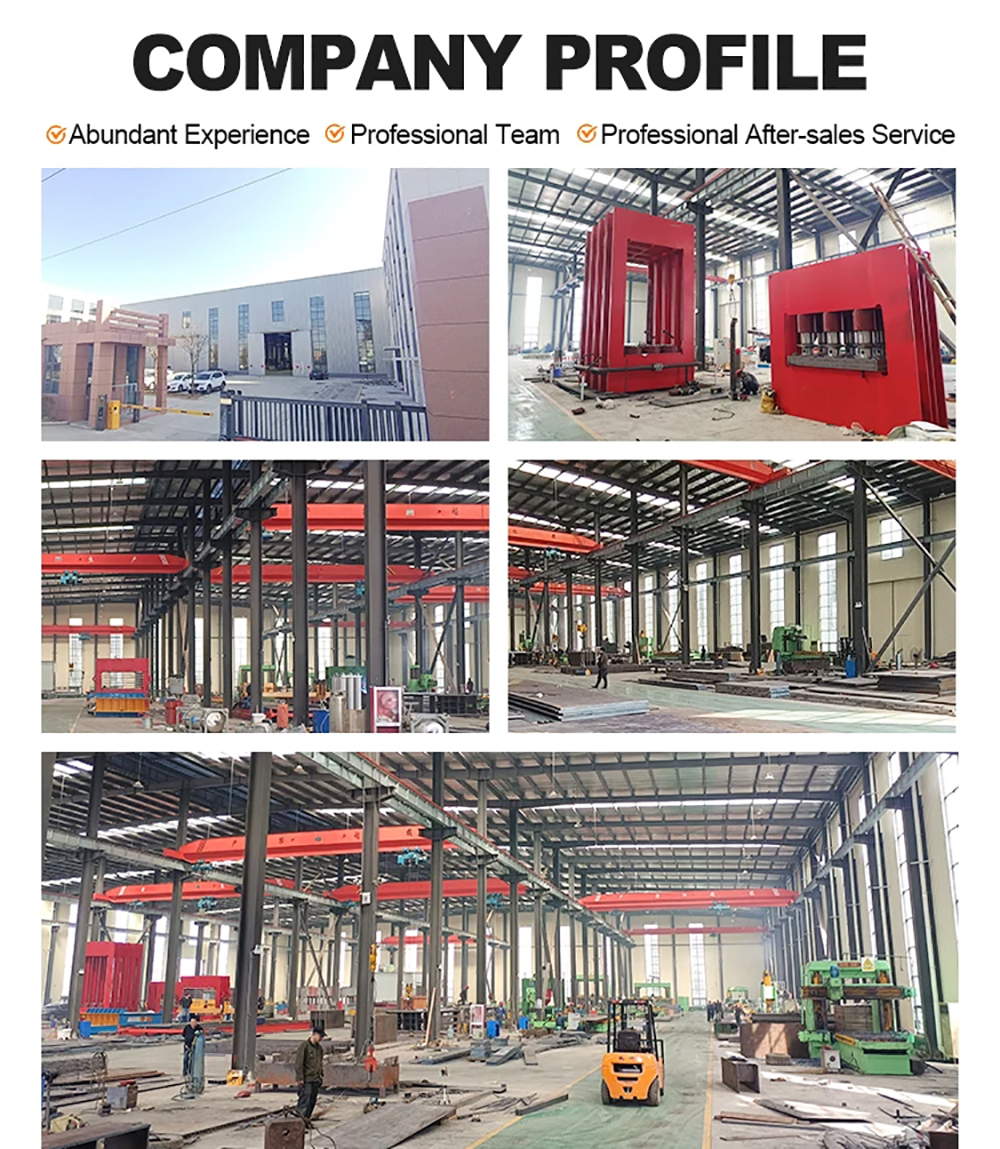

Shandong Menglianggu Machinery Manufacturing Co., Ltd. was new established in 1996. We have been deeply involved in the wood based panel machinery industry for 20 years, and have many industry equipment design experts. We focus on the R&D and manufacturing of a full set of wood based panel machinery and equipment, and provide the whole plant planning and design scheme. The main products include a full set of high grade plywood production equipment, automatic particleboard production line and oriented particleboard production line and other industrial equipment.
We will provide you with professional customized service, quality and after sales guarantee. Your satisfaction is the goal we pursue. Thanks for the trust and support from friends all over the world.
We will live up to expectations and strive to move forward. I believe we will become your closest partner.


Plywood Production Line(图5)

Plywood Production Line(图6)

FAQ:

1. Can you customize products for clients?
Yes, We can customize and produce woodworking machines according to the customer’s requirements or drawings.

2. How can we trust your factory?
We recommend that you come to our factory to see the goods, to verify the real situation of the products, and know more about our factory.

3.Why does the price often change?
The price depends on the latest prices of the raw materials.

4. What about the contract signing?
If you’re satisfied with the products and our service, you can sign the contract with us, pay the deposit. Then we’ll produce the machines as soon as possible. If you are far away, we can sign the contract by fax. We will ensure the quality of the products and the accessories are complete.

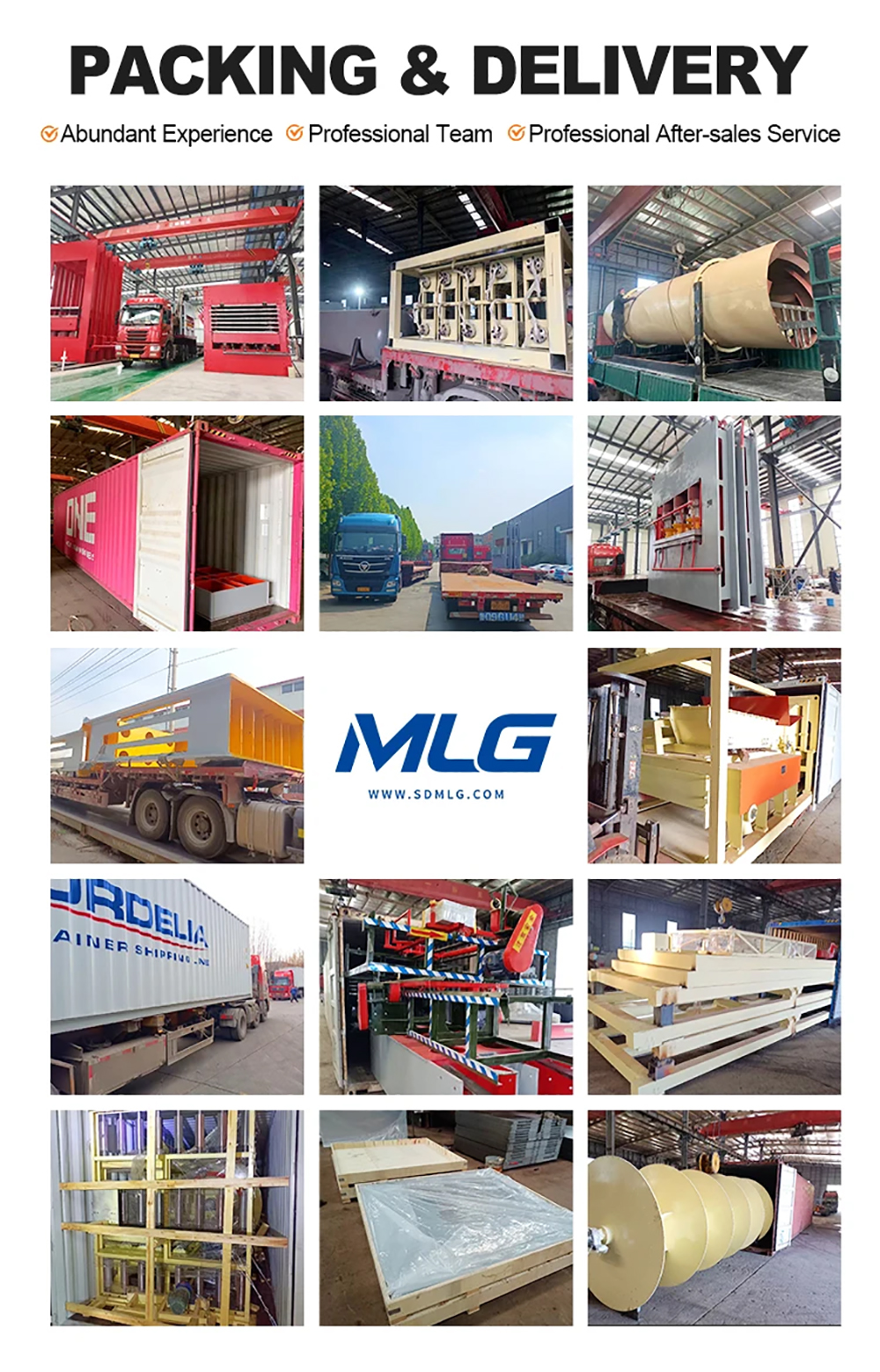

5. How about delivery?
When the product is ready, it can be delivered to you after your full payment. We’ll provide technical guidance.
